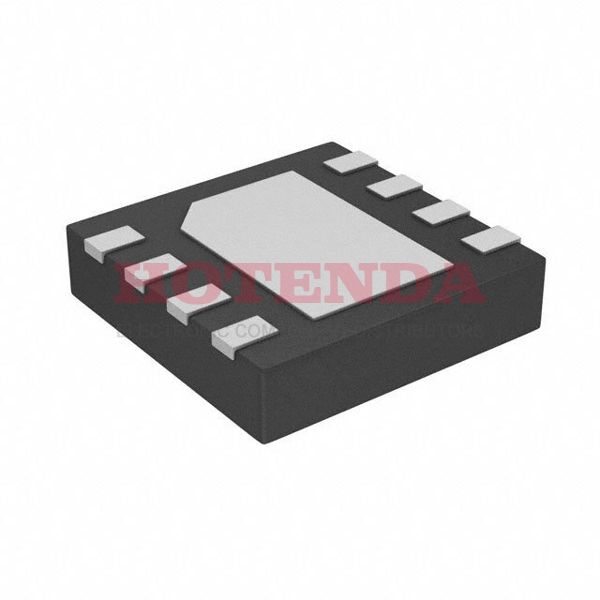

Name: TC1301B-FHAVMF
Brand: Microchip Technology
SKU: TC1301B-FHAVMF
Price: 0.68000 USD
Availability: InStock

new-10%

TC1301B-FHAVMF

Manufacturer part number:TC1301B-FHAVMF

Manufacturer:Microchip Technology

Description:Enable, Reset Fixed 0.65mm TC1301B PMIC TC1301B Series 8 8-VDFN Exposed Pad

Case Package:SOT-23

Datasheet:TC1301B-FHAVMF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Package / Case	8-VDFN Exposed Pad
Mounting Type	Surface Mount
Mount	Surface Mount
Supplier Device Package	8-DFN (3x3)
Mounting Style	SMD/SMT
Supplier Package	DFN EP
Input Voltage Range	6, 2.7 V
Maximum Input Voltage	6 V
Junction to Ambient	41 °C/W
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Product Status	Active
Mfr	Microchip Technology
Base Product Number	TC1301
Package	Tube
Series	TC1301B
Published	2008
Packaging	Tube
Operating Temperature	-40°C~125°C
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	TC1301B
Pin Count	8
JESD-30 Code	S-PDSO-N8
Function	LDO
Number of Outputs	2
Voltage - Input (Max)	6V
Output Voltage	2.63V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.3/0.15 A
Current - Output	300mA, 150mA
Quiescent Current	114μA
Control Features	Enable, Reset
Accuracy	0.5 %
Output Voltage 1	2.8V
Voltage - Output (Min/Fixed)	2.8V 2.6V 2.63V
Number of Regulators	2
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	180μA
Voltage Dropout (Max)	0.18V @ 300mA 0.25V @ 150mA
PSRR	58dB (100Hz)
Dropout Voltage	104mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.15V
Voltage - Output (Max)	-
Screening Level	Extended
Input Voltage Absolute-Max	6.5V
Input Bias Current	58μA
Output Voltage 2	2.6V
Line Regulation	0.02 %/V
Load Regulation	0.1 %
Product Category	LDO Voltage Regulators
Width	3mm
Height Seated (Max)	1mm
Length	3mm
RoHS Status	ROHS3 Compliant
Radiation Hardening	No
Lead Free	Lead Free

TC1301B-FHAVMF Product Details

TC1301B-FHAVMF Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 8-VDFN Exposed Pad case. On the Linear IC itself, there are 8 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 300mA, 150mA from this regulator IC. There are a total of 8 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. For your information, the basic part number for this regulator IC is TC1301B. It operates in the 114μA Quiescent Current state. This IC regulator is a part of the TC1301B Series of devices.
