Name: SG7905K
Brand: Microchip Technology
SKU: SG7905K
Availability: InStock

new-10%

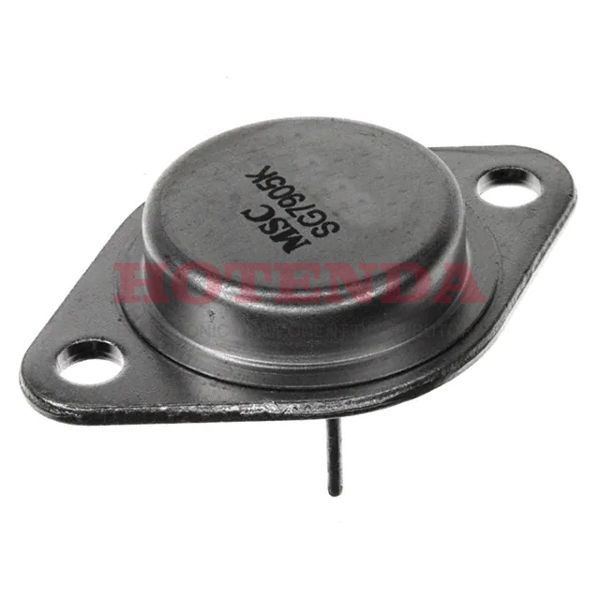

SG7905K

Manufacturer part number:SG7905K

Manufacturer:Microchip Technology

Description:- Fixed SG7905 PMIC Military, MIL-STD-883 Series 2 TO-204AA, TO-3

Case Package:SOT-23

Datasheet:SG7905K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-204AD (TO-3)
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 55 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Bulk
Base Product Number	SG7905
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-55°C~125°C TA
Packaging	Bulk
Series	Military, MIL-STD-883
Published	1999
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Terminal Position	BOTTOM
Terminal Form	PIN/PEG
Number of Functions	1
Base Part Number	SG7905
Pin Count	2
JESD-30 Code	O-MBFM-P2
Number of Outputs	1
Voltage - Input (Max)	-35V
Output Voltage	-5V
Output Type	Fixed
Max Output Current	3.3A
Polarity	Negative
Output Configuration	Negative
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	2mA
Control Features	-
Accuracy	1.5 %
Output Voltage 1	5V
Input Voltage (Min)	7.5V
Voltage - Output (Min/Fixed)	-5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Thermal Shutdown
Current - Quiescent (Iq)	2.5mA
Voltage Dropout (Max)	2.3V @ 500mA
PSRR	54dB (120Hz)
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	2.3V
Voltage Tolerance-Max	6%
Voltage - Output (Max)	-
Input Voltage Absolute-Max	35V
Output Voltage Accuracy	1.5 %
Line Regulation	50 mV
Load Regulation	100 mV
Product	Negative Fixed Voltage Regulator
Product Category	Linear Voltage Regulators
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Exempt

SG7905K Product Details

SG7905K Overview

This Voltage Regulator IC comes inBulk packaging. Packaged in a TO-204AA, TO-3 case, the battery regulator IC is protected from damage during shipment. There are 2 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -55°C~125°C TA degrees. This regulator's output function is configured to be Negative. Its current output stands at 1.5A. There are totally 2 pins on this chip. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is SG7905. It works in 3.3A output current at mostIt operates in the 2mA Quiescent Current state. It is part of the Military, MIL-STD-883 Series.
