Name: MCP1812BT-033/LT
Brand: Microchip Technology
SKU: MCP1812BT-033/LT
Availability: InStock

new-10%

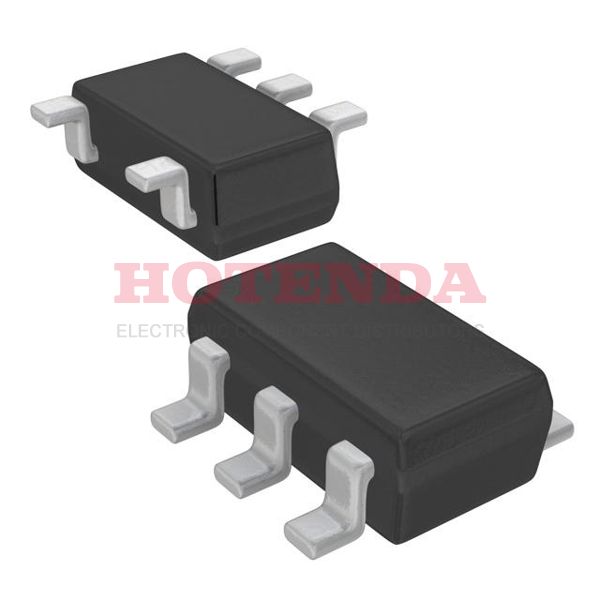

MCP1812BT-033/LT

Manufacturer part number:MCP1812BT-033/LT

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm PMIC MCP1812B Series 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:MCP1812BT-033/LT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Supplier Device Package	SC-70-5
Number of Terminals	5
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1812
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	MCP1812B
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Type	Linear Regulator
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	220μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	3.3 V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	300 mA
Current - Output	300mA
Quiescent Current	250 nA
Control Features	Enable
Output Voltage 1	3.3V
Input Voltage (Min)	3.9V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 300mA
PSRR	50dB (1kHz)
Seated Height-Max	1.1 mm
Dropout Voltage	400 mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	3.432V
Output Voltage1-Min	3.168 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.3 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Line Regulation	20 mV
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	50 mV
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Length	2mm
Width	1.25 mm

MCP1812BT-033/LT Product Details

MCP1812BT-033/LT Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 5-TSSOP, SC-70-5, SOT-353 case. On the Linear IC itself, there are 5 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~85°C TJ degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 300mA from this regulator IC. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. TR is the way in which the voltage regulator IC is packed. It operates in the 250 nA Quiescent Current state. This IC regulator is a part of the MCP1812B Series of devices.
