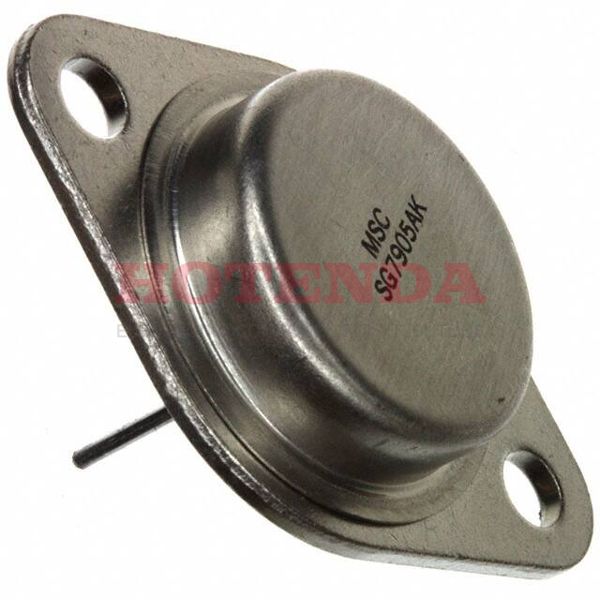

Name: SG7905AK
Brand: Microchip Technology
SKU: SG7905AK
Availability: InStock

new-10%

SG7905AK

Manufacturer part number:SG7905AK

Manufacturer:Microchip Technology

Description:- Fixed SG7905 PMIC Military, MIL-STD-883 Series 2 TO-204AA, TO-3

Case Package:SOT-23

Datasheet:SG7905AK Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-204AD (TO-3)
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 55 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Bulk
Base Product Number	SG7905
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-55°C~125°C TA
Packaging	Bulk
Series	Military, MIL-STD-883
Published	1999
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Terminal Position	BOTTOM
Terminal Form	PIN/PEG
Number of Functions	1
Base Part Number	SG7905
Pin Count	2
JESD-30 Code	O-MBFM-P2
Number of Outputs	1
Voltage - Input (Max)	-35V
Output Voltage	-5V
Output Type	Fixed
Max Output Current	3.3A
Polarity	Negative
Output Configuration	Negative
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	2mA
Control Features	-
Accuracy	1.5 %
Output Voltage 1	5V
Input Voltage (Min)	7.5V
Voltage - Output (Min/Fixed)	-5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Thermal Shutdown
Current - Quiescent (Iq)	2.5mA
Voltage Dropout (Max)	2.3V @ 500mA
PSRR	54dB (120Hz)
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	2.3V
Voltage Tolerance-Max	3%
Voltage - Output (Max)	-
Input Voltage Absolute-Max	35V
Line Regulation	25 mV
Load Regulation	75 mV
Product	Negative Fixed Voltage Regulator
Product Category	Linear Voltage Regulators
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Exempt

SG7905AK Product Details

SG7905AK Overview

A Bulk case is used to deliver the Voltage Regulated IC. A TO-204AA, TO-3 case is used for packaging. As you can see, the IC chip has 2 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. -55°C~125°C TA degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Negative. As far as its current output is concerned, it stands at 1.5A. There are 2 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. For your information, this regulator's basic part number is SG7905. To meet operation requirements, the voltage regulator IC has a maximum output current of 3.3A. It operates in the 2mA Quiescent Current state. Among the Military, MIL-STD-883 Series, the IC voltage regulator is one of the most popular models.
