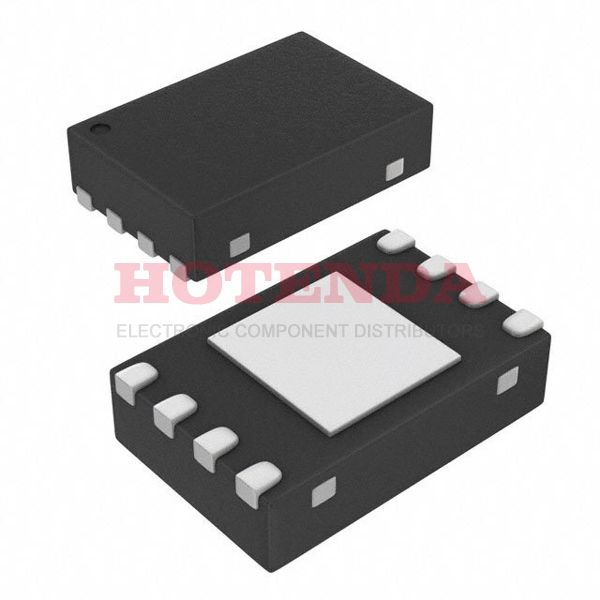

Name: LT3063IDCB
Brand: Linear Technology/Analog Devices
SKU: LT3063IDCB
Availability: InStock

new-10%

LT3063IDCB

Manufacturer part number:LT3063IDCB

Manufacturer:Linear Technology/Analog Devices

Description:Enable Adjustable 0.45mm PMIC 8 8-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3063IDCB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.45mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
JESD-30 Code	R-PDSO-N8
Current - Supply (Max)	10mA
Voltage - Input (Max)	45V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	200mA
Control Features	Enable
Voltage - Output (Min/Fixed)	0.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	90μA
Voltage Dropout (Max)	0.53V @ 200mA
PSRR	85dB (120Hz)
Output Voltage1-Min	0.6V
Voltage - Output (Max)	19V
Length	3mm
Height Seated (Max)	0.8mm
Width	2mm
RoHS Status	Non-RoHS Compliant

LT3063IDCB Product Details

LT3063IDCB Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 8-WFDFN Exposed Pad package. There are 8 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 200mA. IC voltage regulator has a sum of 8 pins.
