Name: SG117AT
Brand: Microchip Technology
SKU: SG117AT
Availability: InStock

new-10%

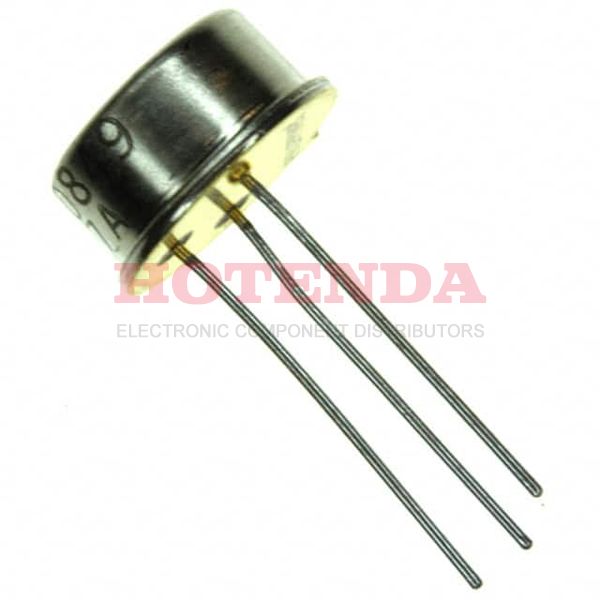

SG117AT

Manufacturer part number:SG117AT

Manufacturer:Microchip Technology

Description:- Adjustable SG117 PMIC - Series 3 TO-205AD, TO-39-3 Metal Can

Case Package:SOT-23

Datasheet:SG117AT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 3 weeks ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-99
Mounting Style	Through Hole
Package	Bulk
Base Product Number	SG117
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Manufacturer	Microchip
Brand	Microchip Technology
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2006
Series	-
JESD-609 Code	e0
Pbfree Code	no
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Type	Three Terminal
Terminal Finish	Tin/Lead (Sn/Pb)
Max Power Dissipation	2W
Terminal Position	BOTTOM
Terminal Form	WIRE
Number of Functions	1
Base Part Number	SG117
Pin Count	3
JESD-30 Code	O-MBCY-W3
Number of Outputs	1
Voltage - Input (Max)	37V
Output Voltage	1.25V
Output Type	Adjustable
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	500mA
Control Features	-
Accuracy	1 %
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	1
Protection Features	Over Current
Voltage Dropout (Max)	-
PSRR	65dB ~ 80dB (120Hz)
Reference Voltage	1.262V
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	3.5V
Voltage - Output (Max)	37V
Min Current Limit	500mA
Load Regulation-Max(%)	1%
Line Regulation	0.01 %/V
Load Regulation	0.1 %
Product	Linear Voltage Regulators
Product Category	Linear Voltage Regulators
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Exempt

SG117AT Product Details

SG117AT Overview

This Voltage Regulator IC comes inBulk packaging. This battery regulator is contained in a TO-205AD, TO-39-3 Metal Can package. There are 3 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -55°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 500mA. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is SG117. It is part of the - Series.
