Name: NCP630AD2T
Brand: ON Semiconductor
SKU: NCP630AD2T
Availability: InStock

new-10%

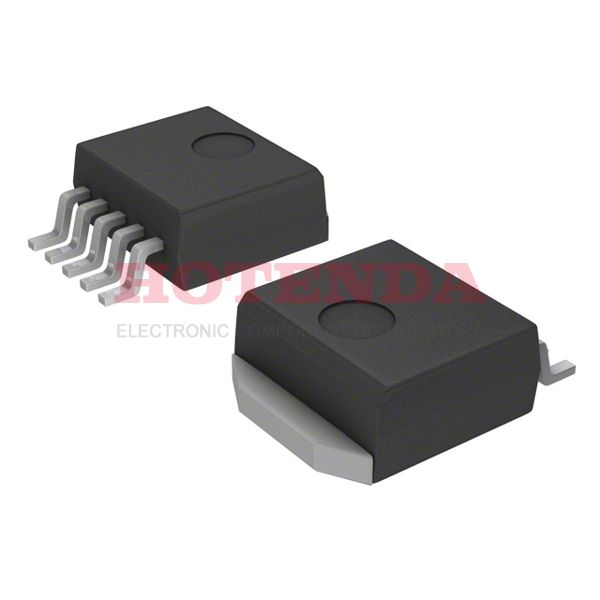

NCP630AD2T

Manufacturer part number:NCP630AD2T

Manufacturer:ON Semiconductor

Description:Enable Adjustable NCP630 PMIC 5 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:NCP630AD2T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2005
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn80Pb20)
Packing Method	RAIL
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	NCP630
Pin Count	5
JESD-30 Code	R-PSSO-G5
Current - Supply (Max)	2mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	12V
Output Voltage	1.2V
Output Type	Adjustable
Output Configuration	Positive
Control Features	Enable
Voltage - Output (Min/Fixed)	1.216V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	1mA
Voltage Dropout (Max)	1.25V @ 3A
PSRR	85dB (1kHz)
Reference Voltage	1.234V
Dropout Voltage	1V
Dropout Voltage1-Nom	1V
Output Current1-Max	3A
Voltage - Output (Max)	10.75V
Min Current Limit	3A
Height Seated (Max)	4.826mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

NCP630AD2T Product Details

NCP630AD2T Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package. There are 5 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. FYI, the basic part number for this IC regulator is NCP630. The way of packing the voltage regulator IC is RAIL.
