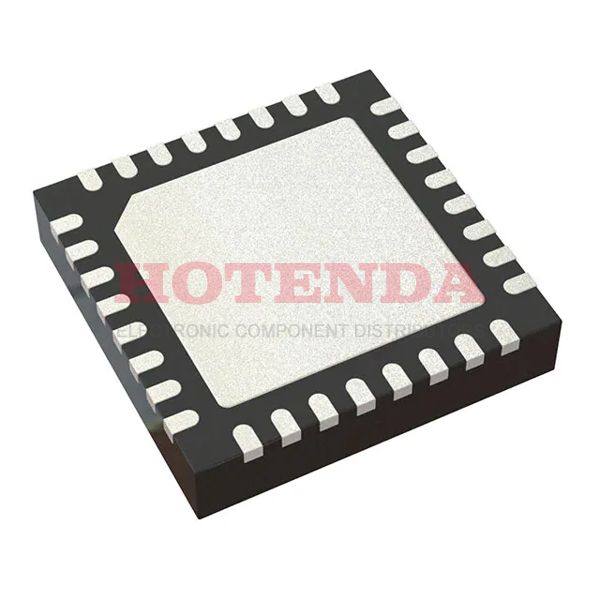

PL904119UMG-TR Overview
As a clock IC, PLLs is packaged using the Tape & Reel (TR) method. The 32-VFQFN Exposed Pad package embeds this Clock PLL. 32 terminations can be found in frequency synthesizer. The clock generator ic should be grounded with a voltage of 2.5V. In this clock generator, Differential or Single-Ended is used as the input to the clock. It is possible to access the full performance of the electrical part by implementing 1 circuits. An up to 850MHz frequency is provided by this clock-based RF synthesizer. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. This clock PLL works with a supply voltage of 2.375V~3.465V. Statistics suggest that the ambient temperature be set at -40°C~85°C TA, which is what is estimated by the test. As the name suggests, this is a clock generator that is compatible with HCSL, LVCMOS, LVDS, LVPECL logic levels. It is possible to classify this electronic component as a Jitter Attenuator. An electronic part belonging to the Jitter Blocker? series is being used here.
PL904119UMG-TR Features
Available in the 32-VFQFN Exposed Pad
Supply voltage of 2.5V
PL904119UMG-TR Applications
There are a lot of Microchip Technology PL904119UMG-TR Clock Generators applications.
- Mechanical devices
- Pulsed digital systems
- Jitter reduction
- Various decoding circuits
- Local oscillator source in receiver
- Clock generation systems
- Simple clock clean-up circuits
- Notebooks
- Navigation, positioning and surveillance system for aircraft, ships and ships
- 1 Gigabit Ethernet
