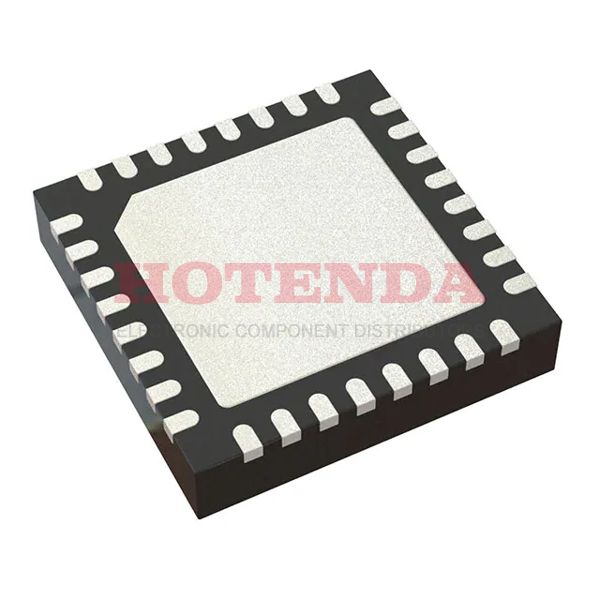

PL904119UMG Overview
A clock integrated circuit is packaged in a Tray-shaped package because it is for use as a clock. Embedded in the 32-VFQFN Exposed Pad package is this Clock PLL. There are a total of 32 terminations in this file. Basically, a voltage of 2.5V should be applied to this electronic frequency generator. Differential or Single-Ended is designed for clock generator's input. It is possible to access the full performance of the electrical part by implementing 1 circuits. A clock-based RF synthesizer that provides a max frequency of 850MHz is available. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. In terms of supply voltage, RF synthesizer works with 2.375V~3.465V. Test statistics estimate a temperature of -40°C~85°C TA, which should be set as the ambient temperature. The RF synthesizer is compatible with HCSL, LVCMOS, LVDS, LVPECL logic levels. This is an electronic part that can be classified as a Jitter Attenuator in this case. There is an electronic part in this series that belongs to the Jitter Blocker? family.
PL904119UMG Features
Available in the 32-VFQFN Exposed Pad
Supply voltage of 2.5V
PL904119UMG Applications
There are a lot of Microchip Technology PL904119UMG Clock Generators applications.
- Digital HDTV systems
- Myriad digital applications
- Fiber Channel
- Picocells, femtocells and small cells
- Set-top boxes
- Cell phones
- Jitter reduction
- Signal generator
- CB radios
- Signal frequency synthesis circuits
