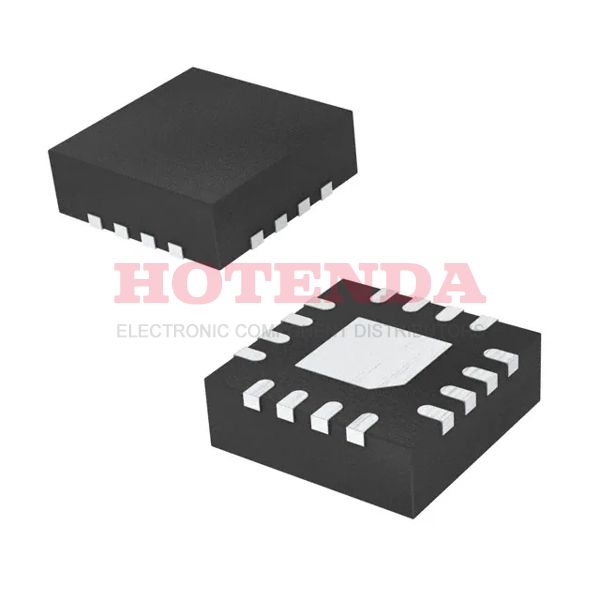

PL502-39UQC-R Overview
Tape & Reel (TR)-method packaging is used for clock ICs. The 16-WFQFN Exposed Pad package contains this clock generator. It is designed that the Clock PLL's input should be Crystal. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 800MHz. Surface Mount-slots make it easy to mount this electronic component on panels. Clock generators should operate with the voltage supply of 2.97V~3.63V. The temperature should be set at 0°C~70°C to ensure reliable performance. A frequency synthesizer which is compatible with the LVDS logic levels is presented here. The related electrical components for the base part number PL502 can be found below. This clock generator ic has an impressive low-temperature operating performance and is capable of 0°C operations. With attenuated performance, this RF synthesizer can survive at 70°C.
PL502-39UQC-R Features
Available in the 16-WFQFN Exposed Pad
PL502-39UQC-R Applications
There are a lot of Microchip Technology PL502-39UQC-R Clock Generators applications.
- Cell phones
- Signal generator
- Radio receivers
- Wireless base station for LTE, LTE-advanced
- Electronic equipment
- Aerospace and defense
- FM demodulation networks for FM operations
- Wireless infrastructure
- Myriad digital applications
- CB radios
