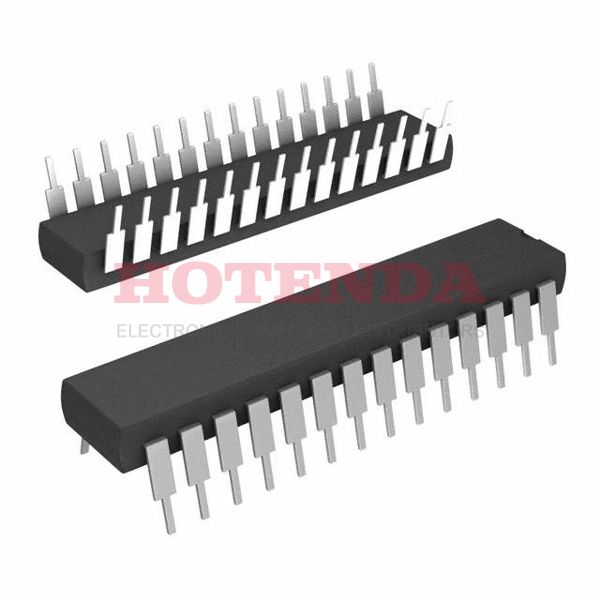

Name: PIC24FJ64GA202-E/SP
Brand: Microchip Technology
SKU: PIC24FJ64GA202-E/SP
Availability: InStock

new-10%

PIC24FJ64GA202-E/SP

Manufacturer part number:PIC24FJ64GA202-E/SP

Manufacturer:Microchip Technology

Description:64KB 64K x 8 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24FJ64GA202 32MHz 3.3V 28-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:PIC24FJ64GA202-E/SP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Through Hole
Package / Case	28-DIP (0.300, 7.62mm)
Surface Mount	YES
Supplier Device Package	28-SPDIP
Package	Tube
Base Product Number	PIC24FJ64GA202
Mfr	Microchip Technology
Data Converters	A/D 10x10b/12b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 24F
Published	2009
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	2.54mm
Frequency	32MHz
Base Part Number	PIC24FJ64GA202
JESD-30 Code	R-PDSO-G28
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	21
Speed	32MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	2V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	PIC
Peripherals	AES, Brown-out Detect/Reset, DMA, I2S, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, IrDA, LINbus, SmartCard, SPI, UART/USART
Bit Size	16
Data Converter	A/D 10x10b/12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
EEPROM Size	-
On Chip Program ROM Width	8
Screening Level	TS 16949
Length	34.671mm
Height Seated (Max)	5.08mm
Width	7.62mm
RoHS Status	ROHS3 Compliant

PIC24FJ64GA202-E/SP Product Details

PIC24FJ64GA202-E/SP Overview

In a 28-DIP (0.300, 7.62mm) package, the MCU is available. 21 I/Os are available. The Microcontroller has a mounting type of Through Hole, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. PIC® XLP™ 24F series components make up this electrical component. 64KB 64K x 8 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 28 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. 64kB is the memory size of the part. The base part number PIC24FJ64GA202 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 32MHz. The device works in YES PWM channels.
