Name: ATSAM4S4BB-UUR
Brand: Microchip Technology
SKU: ATSAM4S4BB-UUR
Availability: InStock

new-10%

ATSAM4S4BB-UUR

Manufacturer part number:ATSAM4S4BB-UUR

Manufacturer:Microchip Technology

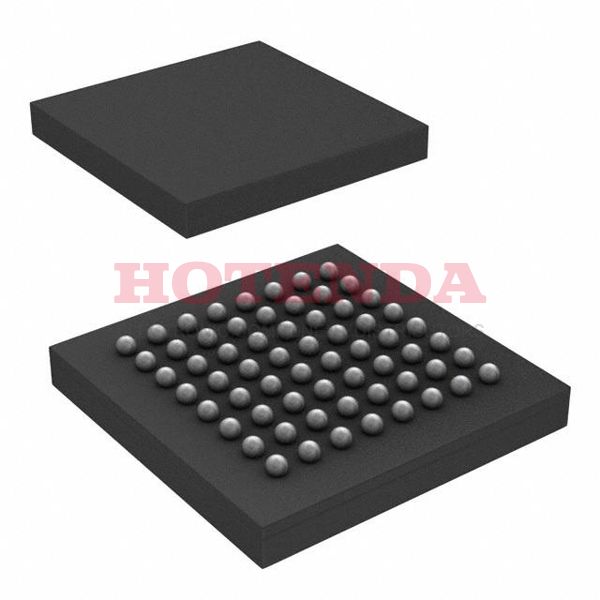

Description:256KB 256K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4S Series ATSAM4S4 1.2V 64-UFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAM4S4BB-UUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Package / Case	64-UFBGA, WLCSP
Mounting Type	Surface Mount
Supplier Device Package	64-WLCSP (3.3x3.3)
Number of Terminals	64
Data Converters	A/D 11x12b, D/A 2x12b
Package	Tape & Reel (TR)
Base Product Number	ATSAM4S
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	47
Series	SAM4S
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~85°C TA
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	1.2V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Base Part Number	ATSAM4S4
JESD-30 Code	S-PBGA-B64
Supply Voltage-Max (Vsup)	1.32V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.08V
Oscillator Type	Internal
Number of I/O	47
Speed	120MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	50MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 11x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.533 mm
EEPROM Size	--
ROM Programmability	FLASH
Height Seated (Max)	0.533mm
Width	3.323mm
Length	3.323mm
RoHS Status	ROHS3 Compliant

ATSAM4S4BB-UUR Product Details

ATSAM4S4BB-UUR Overview

This Microcontroller comes in a 64-UFBGA, WLCSP package. This Microcontroller has 47 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in SAM4S Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by ARM® Cortex®-M4 Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 64 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.2V supply voltage. MCU chip has YES DMA channels. You can find alternatives through the base part number ATSAM4S4. The device works in YES PWM channels. It is at 50MHz clock frequency.
