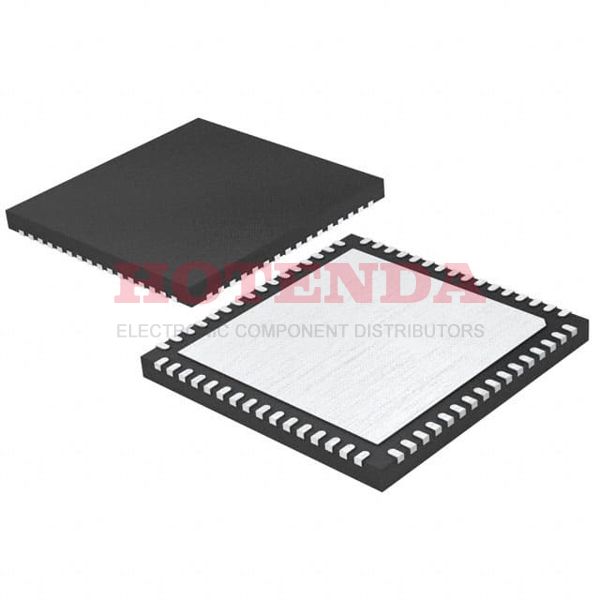

PIC24FJ256DA106-I/MR Overview
The package has a 64-VFQFN Exposed Pad shape. With 52 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 16-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The PIC® 24F series is comprised of this electrical component. The electronic part has a program memory size of 256KB 85.5K x 24. There's a PIC Core Processor inside. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. There are 64 terminations on the IC chip. 16-bits are the size of the data that comes with MCU. A 3.3V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 256kB. It is possible to find alternatives to the base part number PIC24FJ256DA106 by using the part number search tool. An effective performance can be achieved at a frequency of 32MHz. It is possible to access the 64 pins on the chip. In total, it has 5 timers and counters in it. A total of 64 pins are included in the package. There are several CPUs that are embedded in the device, including the the PIC CPU. As far as the programmability is concerned, it has 23 Programmable I/Os. As far as UART channels are concerned, it has 4. The ADC channels on this device total 16 in number. It has a set of 1 A/D converters on board the device. A total of 9 PWM channels are being used by the device. The part has been designed to incorporate 3 I2C channels.
PIC24FJ256DA106-I/MR Features
64-VFQFN Exposed Pad package
Mounting type of Surface Mount
PIC24FJ256DA106-I/MR Applications
There are a lot of Microchip Technology
PIC24FJ256DA106-I/MR Microcontroller applications.
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
