Name: STR715FR0T6
Brand: STMicroelectronics
SKU: STR715FR0T6
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-LQFP
Number of Pins	64
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	STR7
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Termination	SMD/SMT
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	66MHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	STR715
Pin Count	64
Operating Supply Voltage	3.3V
Interface	CAN, I2C, SPI, UART, USART, USB
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	32
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM7®
Peripherals	PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8 + 16K
Connectivity	I2C, HDLC, SmartCard, SPI, UART/USART
Supply Current-Max	100mA
Bit Size	32
Data Converter	A/D 4x12b
Access Time	66 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	32b
DAC Channels	NO
Number of Timers/Counters	4
Density	512 kb
Core Architecture	ARM
On Chip Program ROM Width	32
Number of PWM Channels	3
Length	10mm
Height Seated (Max)	1.6mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

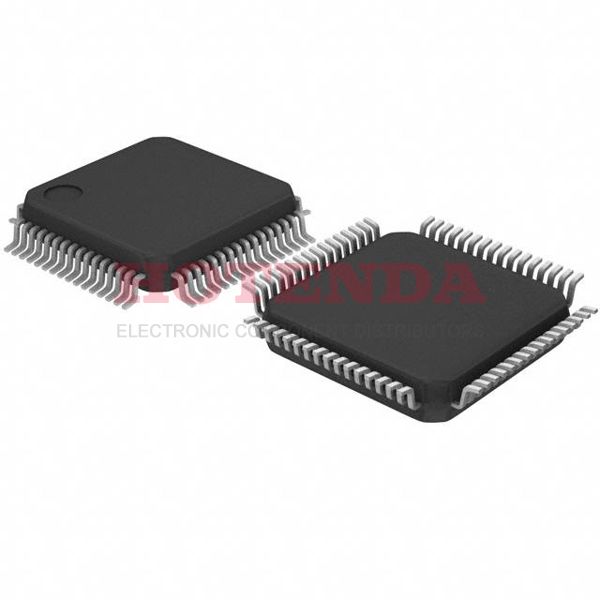

STR715FR0T6 Product Details

STR715FR0T6 Description

ARM-powered 32-bit microcontrollers with integrated Flash and RAM are part of the STR715FR0T6 series. It includes a powerful ARM7TDMI CPU together with a wide variety of peripheral features and improved I/O capabilities. High-speed RAM and single-voltage FLASH memory are both built into STR71xF devices. Although STR710R devices lack internal Flash, they do feature fast RAM. The STR71x family is compatible with all ARM tools and software because it features an embedded ARM core.

STR715FR0T6 Features

Clock, reset and supply management

– 3.0 to 3.6 V application supply and I/Os

– Internal 1.8 V regulator for core supply

– Clock input from 0 to 16.5 MHz

– Embedded RTC osc. running from external 32 kHz crystal

– Embedded PLL for CPU clock

– Realtime Clock for clock-calendar function

– 5 power saving modes: SLOW, WAIT, LPWAIT, STOP and STANDBY modes

Nested interrupt controller

– Fast interrupt handling with multiple vectors

– 32 vectors with 16 IRQ priority levels

– 2 maskable FIQ sources

Up to 48 I/O ports

– 30/32/48 multifunctional bidirectional I/Os Up to 14 ports with interrupt capability

Core

– ARM7TDMI 32-bit RISC CPU

– 59 MIPS @ 66 MHz from SRAM

– 45 MIPS @ 50 MHz from Flash

Memories

– Up to 256 Kbytes Flash program memory (10 kcycles endurance, 20 years retention @ 85 ° C)

– 16 Kbytes Flash data memory (100 kcycles endurance, 20 years

retention@ 85 ° C)

– Up to 64 Kbytes RAM

– External Memory Interface (EMI) for up to 4 banks of SRAM, Flash, ROM

– Multi-boot capability

STR715FR0T6 Applications

There are a lot of STMicroelectronics STR715FR0T6 Microcontroller applications. STR715FR0T6 MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
