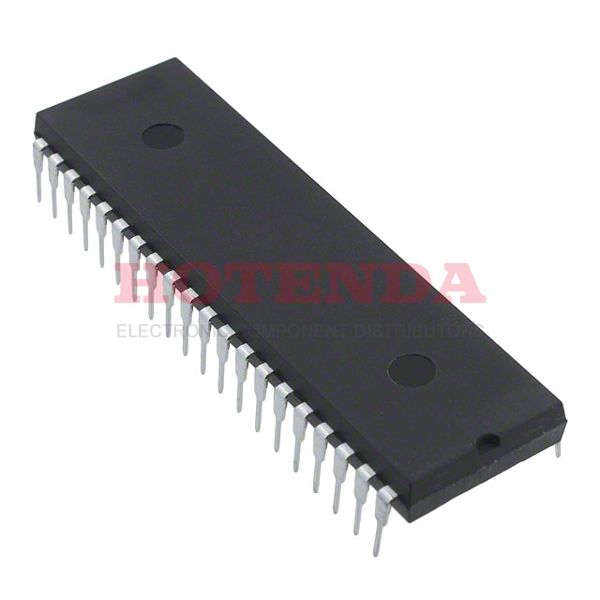

Name: PIC18F4520-E/P
Brand: Microchip Technology
SKU: PIC18F4520-E/P
Price: 8.54000 USD
Availability: InStock

new

PIC18F4520-E/P

Manufacturer part number:PIC18F4520-E/P

Manufacturer:Microchip Technology

Description:32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18F Series PIC18F4520 40 Pin 40MHz 5V 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:PIC18F4520-E/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Number of Pins	40
Supplier Device Package	40-PDIP
Mounting Style	Through Hole
Interfaces	I2C/SPI/USART
Data Converters	A/D 13x10b
Package	Tube
Base Product Number	PIC18F4520
Mfr	Microchip Technology
Product Status	Active
Family Name	PIC18F
Instruction Set Architecture	RISC
Dimensions	2.095 x 0.58 x 0.195in
Typical Operating Supply Voltage	2 → 5.5 V
Package Type	PDIP
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Number of I/Os	36 I/O
Interface Type	I2C, MSSP, PSP, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® 18F
Published	2004
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	40
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	DUAL
Supply Voltage	5V
Frequency	40MHz
Base Part Number	PIC18F4520
Pin Count	40
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Interface	I2C, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	36
Speed	25MHz
RAM Size	1.5K x 8
Voltage - Supply (Vcc/Vdd)	4.2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	8
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 13x10b
Watchdog Timer	Yes
Access Time	40 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
Number of Timers/Counters	4
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	256 x 8
CPU Family	PIC
Number of UART Channels	1
Number of ADC Channels	13
Number of PWM Channels	2
Number of I2C Channels	1
Number of SPI Channels	1
Number of USB Channels	1
Product	MCU
Number of Ethernet Channels	0
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Height	4.953mm
Length	53.21mm
Width	14.732mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC18F4520-E/P Product Details

PIC18F4520-E/P Description

The PIC18F4520-E/P is a 40-Pin Enhanced Flash Microcontroller with 10-Bit A/D and nanoWatt Technology.

PIC18F4520-E/P Features

C Compiler Optimized Architecture:
- Optional extended instruction set designed to optimize re-entrant code
100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical
1,000,000 Erase/Write Cycle Data EEPROM Memory Typical
Flash/Data EEPROM Retention: 100 Years Typical
Self-Programmable under Software Control
Priority Levels for Interrupts
8 x 8 Single-Cycle Hardware Multiplier
Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 131s
Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins
In-Circuit Debug (ICD) via Two Pins
Wide Operating Voltage Range: 2.0V to 5.5V
Programmable Brown-out Reset (BOR) with Software Enable Option
