Name: PIC16LF818T-I/ML
Brand: Microchip Technology
SKU: PIC16LF818T-I/ML
Price: 4.29000 USD
Availability: InStock

new-10%

PIC16LF818T-I/ML

Manufacturer part number:PIC16LF818T-I/ML

Manufacturer:Microchip Technology

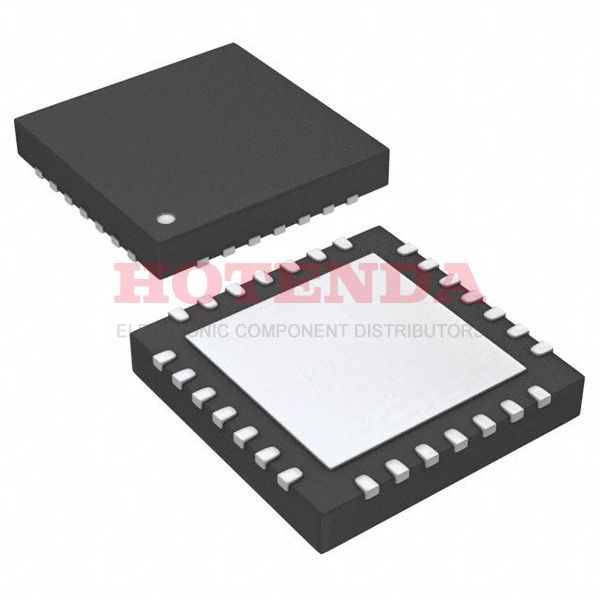

Description:1.75KB 1K x 14 FLASH PIC 8-Bit Microcontroller PIC® 16F Series PIC16LF818 28 Pin 20MHz 3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF818T-I/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Number of Pins	28
Supplier Device Package	28-QFN (6x6)
Mounting Style	SMD/SMT
Interfaces	I2C/SPI
Data Converters	A/D 5x10b
Package	Tape & Reel (TR)
Base Product Number	PIC16LF818
Mfr	Microchip Technology
Product Status	Active
Number of I/Os	16 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, SSP
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 16F
Published	2004
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	ALSO OPERATES AT 2V MINIMUM SUPPLY
Max Power Dissipation	1W
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.65mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF818
Pin Count	28
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2.5/5V
Supply Voltage-Min (Vsup)	3V
Interface	I2C, SPI, SSP
Memory Size	1.8kB
Oscillator Type	Internal
Number of I/O	16
Speed	10 MHz
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	1.75KB 1K x 14
Connectivity	I2C, SPI
Supply Current-Max	2.8mA
Bit Size	8
Data Converter	A/D 5x10b
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	1024
EEPROM Size	128 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Number of ADC Channels	5 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	6mm
Height Seated (Max)	1mm
Width	6 mm
Height	0.88 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16LF818T-I/ML Product Details

PIC16LF818T-I/ML Overview

There is a 28-VQFN Exposed Pad package available. The board has 16 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® 16F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 1.75KB 1K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 28. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3V volts. A total of NO DMA channels are available. This IC part has a memory size of 1.8kB. There are a number of alternatives to the base part number PIC16LF818 that you can find. Performing well when operated at frequency 20MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 28 pins that can be accessed. It comes with 3 timers/counters that can be set up. The pins counted are 28. The device is powered by the the PIC CPU family that is embedded in it. In addition to these features, there are a number of other ones, such as this one: ALSO OPERATES AT 2V MINIMUM SUPPLY. The device has a total of 5 Channel ADC channels in total.
