Name: PIC18F25Q10T-I/ML
Brand: Microchip Technology
SKU: PIC18F25Q10T-I/ML
Price: 1.40000 USD
Availability: InStock

new-10%

PIC18F25Q10T-I/ML

Manufacturer part number:PIC18F25Q10T-I/ML

Manufacturer:Microchip Technology

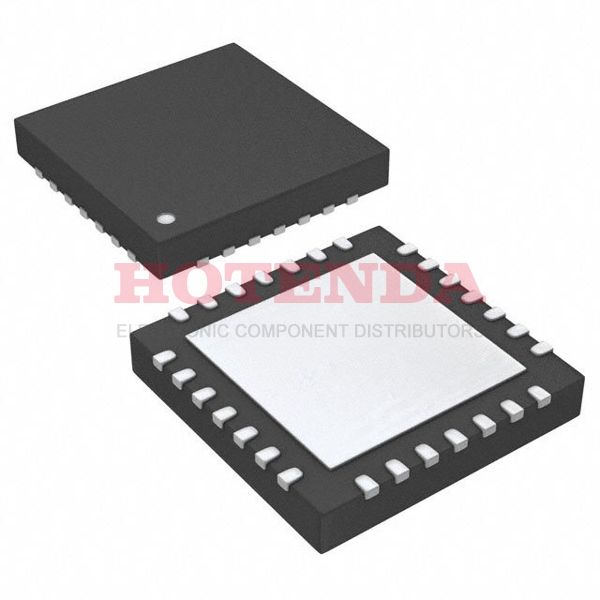

Description:32KB 32K x 8 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18Q Series PIC18F25Q10 3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18F25Q10T-I/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	28-QFN (6x6)
Mounting Style	SMD/SMT
Data Converters	A/D 24x10b, D/A 1x5b
DAC Resolution	5 bit
Number of I/Os	25 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, Serial, SPI, SMBus, USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	PIC
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC18F25
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 18Q
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	PIC18F25Q10
JESD-30 Code	S-PQCC-N28
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	1.8V
Oscillator Type	Internal
Number of I/O	25
Speed	64MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	64MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, SPI, UART/USART
Data Converter	A/D 24x10b; D/A 1x5b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8 bit
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	4 Timer
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	256 x 8
On Chip Program ROM Width	8
Number of ADC Channels	24 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Length	6mm
Height Seated (Max)	1mm
Width	6mm
RoHS Status	RoHS Compliant

PIC18F25Q10T-I/ML Product Details

PIC18F25Q10T-I/ML Overview

28-VQFN Exposed Pad-packages are available. There are 25 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® XLP™ 18Q series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. PIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 28 terminations on MCU chip. This Microcontroller chip is powered by 3V volts. There are NO DMA channels on this Microcontroller chip. The base part number PIC18F25Q10 provides alternatives. Using the PWM channel YES, the device works with the motor. Using the timer/counter system, it has 4 Timer timers/counters. It's got a 64MHz clock. In total, it has 24 Channel ADC channels for the measurement of signals.
