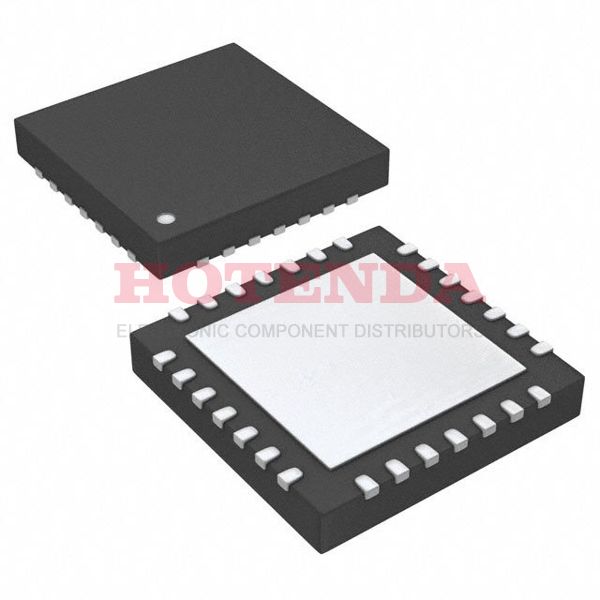

32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18F25K20 28 Pin 64MHz 28-VQFN Exposed Pad
SOT-23
PIC18F25K20-I/ML Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Lifecycle Status
Production (Last Updated: 2 years ago)
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
28-VQFN Exposed Pad
Number of Pins
28
Supplier Device Package
28-QFN (6x6)
Mounting Style
SMD/SMT
Interfaces
I2C/SPI/USART
MSL
MSL 1 - Unlimited
Qualification
AEC-Q100
Number of I/Os
25 I/O
Maximum Operating Temperature
+ 125 C
Minimum Operating Temperature
- 40 C
Interface Type
CCP, ECCP, EUSART, I2C, MSSP, SPI
Manufacturer
Microchip
Brand
Microchip Technology / Atmel
Tradename
PIC
RoHS
Details
Schedule B
8542310000
Package
Tube
Base Product Number
PIC18F25
Mfr
Microchip Technology
Data Converters
A/D 11x10b
Product Status
Active
Operating Temperature
-40°C~85°C TA
Packaging
Tube
Series
PIC® XLP™ 18K
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
28
Terminal Finish
Matte Tin (Sn) - annealed
Max Operating Temperature
85 °C
Min Operating Temperature
-40 °C
Max Power Dissipation
1W
Terminal Position
QUAD
Peak Reflow Temperature (Cel)
260
Terminal Pitch
0.65mm
Frequency
64MHz
Time@Peak Reflow Temperature-Max (s)
40
Base Part Number
PIC18F25K20
Pin Count
28
Supply Voltage-Max (Vsup)
3.5V
Supply Voltage-Min (Vsup)
3V
Interface
I2C, SPI, UART, USART
Max Supply Voltage
3.6 V
Min Supply Voltage
1.8 V
Memory Size
32kB
Oscillator Type
Internal
Number of I/O
24
Speed
64MHz
RAM Size
1.5K x 8
Memory Type
FLASH
Voltage - Supply (Vcc/Vdd)
1.8V~3.6V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER
Core Processor
PIC
Peripherals
Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type
FLASH
Core Size
8-Bit
Program Memory Size
32KB 16K x 16
Connectivity
I2C, SPI, UART/USART
Bit Size
8
Data Converter
A/D 11x10b
Watchdog Timer
Yes
Has ADC
YES
DMA Channels
NO
Data Bus Width
8b
Number of Timers/Counters
4
Product Type
8-bit Microcontrollers - MCU
Core Architecture
PIC
EEPROM Size
256 x 8
CPU Family
PIC
Max Frequency
64 MHz
Number of Programmable I/O
25
Number of ADC Channels
11
Number of PWM Channels
2
Number of I2C Channels
1
Number of SPI Channels
1
Product
MCU
Product Category
8-bit Microcontrollers - MCU
Device Core
PIC
Height
950μm
Length
6mm
Width
6mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:2517 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$2.10000
$2.1
25
$1.92600
$48.15
100
$1.75100
$175.1
PIC18F25K20-I/ML Product Details
PIC18F25K20-I/ML Description
The PIC18F25K20-I/ML is a high-performance PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller that packs powerful PIC®(RISC) architecture with up to 16 MIPS of processing power with benchmark nanoWatt XLP extreme low power consumption.
PIC18F25K20-I/ML Features
C Compiler Optimized Architecture:
- Optional extended instruction set designed to optimize re-entrant code
Up to 1024 bytes Data EEPROM
Up to 64 Kbytes Linear Program Memory Addressing
Up to 3936 bytes of Linear Data Memory Addressing
Up to 16 MIPS Operation
16-bit Wide Instructions, 8-bit Wide Data Path
Priority Levels for Interrupts
31-Level, Software Accessible Hardware Stack
8 x 8 Single-Cycle Hardware Multiplier
Operating Voltage Range: 1.8V to 3.6V
Self-Programmable under Software Control
Programmable 16-Level High/Low-Voltage
PIC18F25K20-I/ML Application
Industrial
Automotive
Consumer Electronics
Motor Drive & Control
Lighting
Medical
Security
