Name: PIC16LF628AT-I/SS
Brand: Microchip Technology
SKU: PIC16LF628AT-I/SS
Price: 3.90000 USD
Availability: InStock

new-10%

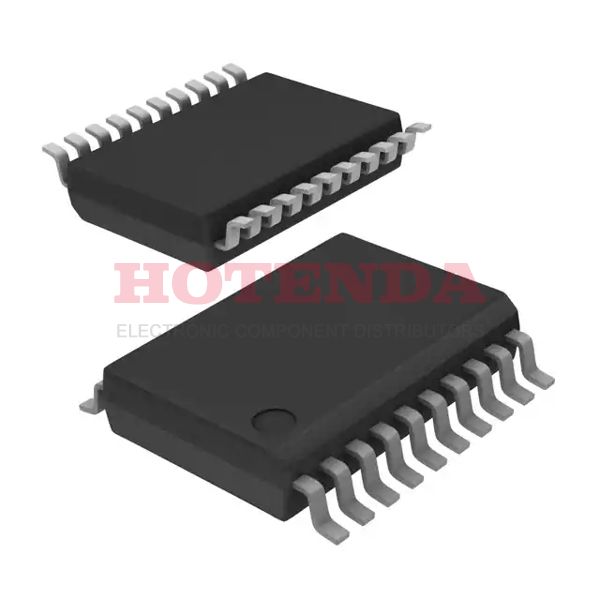

PIC16LF628AT-I/SS

Manufacturer part number:PIC16LF628AT-I/SS

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® 16F Series PIC16LF628A 20 Pin 20MHz 5V 20-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16LF628AT-I/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Number of Pins	20
Supplier Device Package	20-SSOP
Mounting Style	SMD/SMT
Data Converters	--
Number of I/Os	16 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	SCI, USART
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC16LF628
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 16F
Published	2003
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 2 V AT 4 MHZ
Max Power Dissipation	800mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LF628A
Pin Count	20
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2.5/5V
Supply Voltage-Min (Vsup)	4.5V
Interface	SCI, UART, USART
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	16
Speed	20MHz
RAM Size	224 x 8
Voltage - Supply (Vcc/Vdd)	2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	UART/USART
Bit Size	8
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	128 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Length	7.2mm
Height Seated (Max)	2mm
Width	5.3 mm
Height	1.75 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16LF628AT-I/SS Product Details

PIC16LF628AT-I/SS Overview

In a 20-SSOP (0.209, 5.30mm Width) package, the MCU is available. 16 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. PIC® 16F series components make up this electrical component. 3.5KB 2K x 14 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 20 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 3.5kB is the memory size of the part. The base part number PIC16LF628A can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 20MHz. The device works in YES PWM channels. Located on the chip are 20 pins. The clock has 3 timers or counters on it. There are 20 pins on it. In this device, there is a PIC CPU embedded within it. I would like to mention a few additional features such as ALSO OPERATES AT 2 V AT 4 MHZ in order to name a few.
