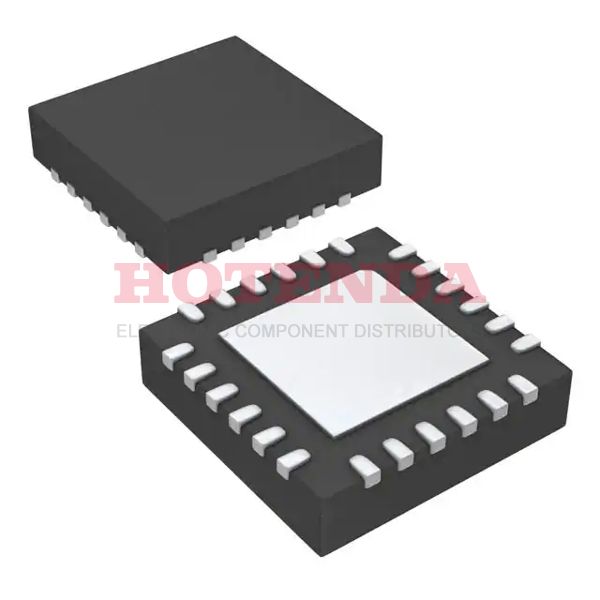

MKL03Z16VFK4

MKL03Z16VFK4 Description

The MKL03Z16VFK4 is a 48 MHz Cortex-M0+ Based Microcontroller. A microcontroller is a tiny computer on a single VLSI integrated circuit (IC) chip, often known as an MCU (microcontroller unit). One or more CPUs (processor cores), memory, and programmable input/output peripherals are all included in a microcontroller. Along with a tiny amount of RAM, on-chip program memory frequently also includes ferroelectric RAM, NOR flash, or OTP ROM. In contrast to the microprocessors used in personal computers or other general-purpose applications made up of numerous discrete chips, microcontrollers are intended for embedded applications.

MKL03Z16VFK4 Features

Human-machine interface

• General-purpose input/output up to 22

Communication interfaces

• One 8-bit SPI module

• One LPUART module

• One I2C module supporting up to 1 Mbit/s, with double buffer

Analog Modules

• 12-bit SAR ADC with internal voltage reference, up to 818 ksps and 7 channels

• High-speed analog comparator containing a 6-bit DAC and programmable reference input

• 1.2 V voltage reference (Vref)

Timers

• Two 2-channel Timer/PWM modules

• One low-power timer

• Real time clock

Security and integrity modules

• 80-bit unique identification number per chip

Core

• ARM? Cortex?-M0+ core up to 48 MHz

Memories

• Up to 32 KB program flash memory

• 2 KB SRAM

• 8 KB ROM with build-in bootloader

• 16 bytes regfile

System peripherals

• Nine low-power modes to provide power optimization based on application requirements

• COP Software watchdog

• Low-leakage wakeup unit

• SWD debug interface and Micro Trace Buffer

• Bit Manipulation Engine

Clocks

• 48 MHz high accuracy internal reference clock

• 8/2 MHz low power internal reference clock

• 32 kHz to 40 kHz crystal oscillator

• 1 kHz LPO clock

Operating Characteristics

• Voltage range: 1.71 to 3.6 V

• Flash write voltage range: 1.71 to 3.6 V

• Temperature range (ambient): -40 to 105°C for QFN packages; -40 to 85°C for WLCSP packages

MKL03Z16VFK4 Applications

• Light sensing & controlling devices

• Temperature sensing and controlling devices

• Fire detection & safety devices

• Industrial instrumentation devices

• Process control devices
