Name: PIC16LF19196T-E/MRVAO
Brand: Microchip Technology
SKU: PIC16LF19196T-E/MRVAO
Availability: InStock

new-10%

PIC16LF19196T-E/MRVAO

Manufacturer part number:PIC16LF19196T-E/MRVAO

Manufacturer:Microchip Technology

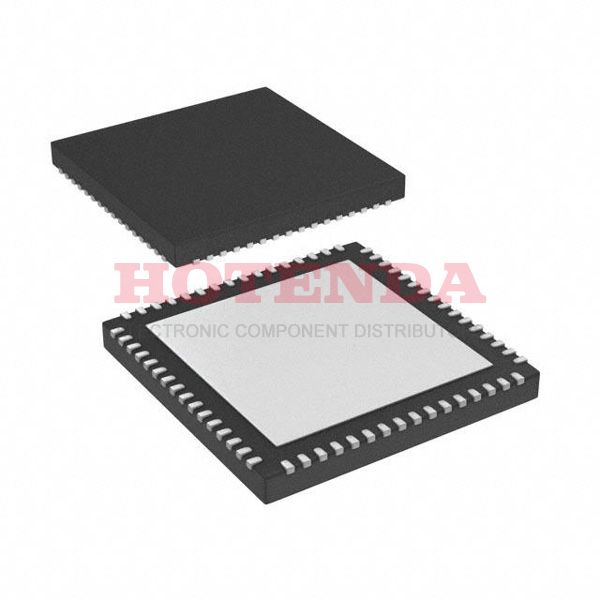

Description:28KB 16K x 14 FLASH PIC 8-Bit Microcontroller Automotive, AEC-Q100, PIC® XLP™ 16F Series 3V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF19196T-E/MRVAO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	64-QFN (9x9)
Package	Tape & Reel (TR)
Base Product Number	PIC16LF19196
Mfr	Microchip Technology
Data Converters	A/D 45x12b; D/A 1x5b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, PIC® XLP™ 16F
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	64
Additional Feature	1.8 V MINIMUM SUPPLY AT 16 MHZ
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
JESD-30 Code	S-PQCC-N64
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.5V
Oscillator Type	Internal
Number of I/O	59
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	28KB 16K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	8
Data Converter	A/D 45x12b; D/A 1x5b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
ROM (words)	16384
EEPROM Size	256 x 8
On Chip Program ROM Width	14
CPU Family	PIC
Boundary Scan	NO
Low Power Mode	YES
Integrated Cache	NO
RAM (words)	1024
RAM (bytes)	2048
Number of Timers	2
Number of External Interrupts	2
Time-Min	SECONDS
Length	9mm
Height Seated (Max)	0.9mm
Width	9mm

PIC16LF19196T-E/MRVAO Product Details

PIC16LF19196T-E/MRVAO Overview

This Microcontroller comes in a 64-VFQFN Exposed Pad package. This Microcontroller has 59 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 28KB 16K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 64 terminals. Microcontroller comes with 8 bit size. The component always operates in 3V supply voltage. MCU chip has NO DMA channels. The device works in YES PWM channels. The device is embedded with PIC CPU family. It is at 32MHz clock frequency. To name a few, there are additional features like 1.8 V MINIMUM SUPPLY AT 16 MHZ. 2 external interrupts are included in the eletrical part. There are a series of 2 timers in the Microcontroller chip.
