Name: PIC24F08KM101-E/SS
Brand: Microchip Technology
SKU: PIC24F08KM101-E/SS
Availability: InStock

new-10%

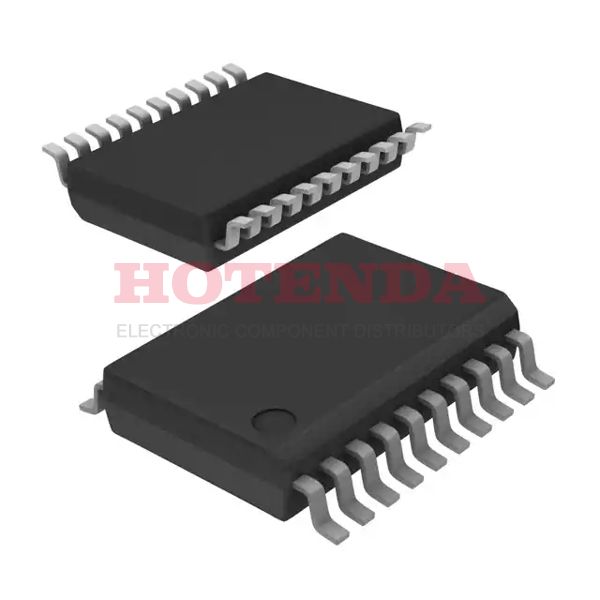

PIC24F08KM101-E/SS

Manufacturer part number:PIC24F08KM101-E/SS

Manufacturer:Microchip Technology

Description:8KB 2.75K x 24 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24F08KM101 3V 20-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC24F08KM101-E/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Supplier Device Package	20-SSOP
Data Converters	A/D 16x10b/12b
Package	Tube
Base Product Number	PIC24F08KM101
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 24F
Published	2013
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
HTS Code	8542.31.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	3V
Terminal Pitch	0.65mm
Base Part Number	PIC24F08KM101
JESD-30 Code	R-PDSO-G20
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	2/3.3V
Supply Voltage-Min (Vsup)	1.8V
Oscillator Type	Internal
Number of I/O	18
Speed	32MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	8KB 2.75K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	10mA
Bit Size	16
Data Converter	A/D 16x10b/12b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
ROM (words)	2730
EEPROM Size	512 x 8
On Chip Program ROM Width	24
Low Power Mode	NO
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	512
Number of Serial I/Os	1
Number of Timers	1
Number of External Interrupts	3
On Chip Data RAM Width	16
Length	7.2mm
Height Seated (Max)	2mm
Width	5.3mm
RoHS Status	ROHS3 Compliant

PIC24F08KM101-E/SS Product Details

PIC24F08KM101-E/SS Overview

Packaged in a 20-SSOP (0.209, 5.30mm Width) format, this MCU is available in a compact size. There are 18 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 16-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The PIC® XLP™ 24F series includes this electrical component. There is 8KB 2.75K x 24 bytes of program memory in MCU, which corresponds to the size of the program. With a PIC Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 20 terminations were applied to the IC chip. 16-bits are used in Microcontroller. The MCU chip's supply output is 3V volts. Currently, MCU chip has NO DMA channels. Alternatives can be found by looking at the base part number PIC24F08KM101. There are YES PWM channels on the device. The clock function of this device is based on a 32MHz-frequency. A total of 1 serial I/Os are incorporated into this part. There are 3 external interrupts included in this chip part. There are 1 bits in total on an IC chip.
