Name: PIC16LF1516-E/ML
Brand: Microchip Technology
SKU: PIC16LF1516-E/ML
Availability: InStock

new-10%

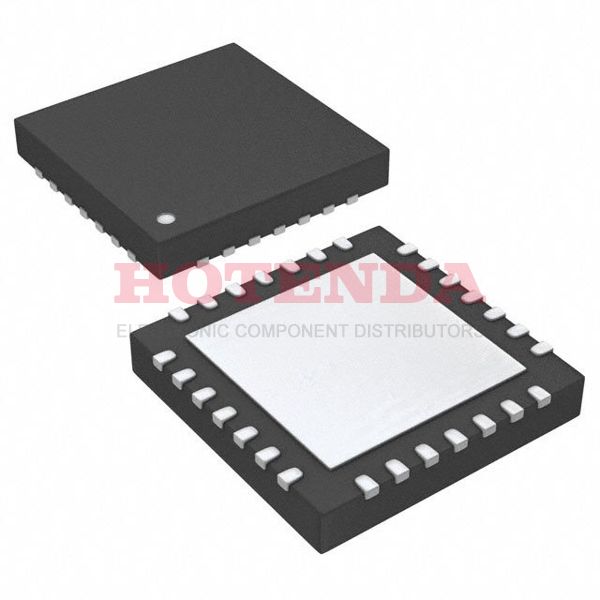

PIC16LF1516-E/ML

Manufacturer part number:PIC16LF1516-E/ML

Manufacturer:Microchip Technology

Description:14KB 8K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16LF1516 28 Pin 20MHz 3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16LF1516-E/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-QFN (6x6)
Interfaces	I2C/SPI/USART
Data Converters	A/D 17x10b
Package	Tube
Base Product Number	PIC16LF1516
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 16F
Published	2016
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Additional Feature	ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 16 MHZ
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3V
Terminal Pitch	0.65mm
Frequency	20MHz
Base Part Number	PIC16LF1516
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.5V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	14kB
Oscillator Type	Internal
Number of I/O	25
Speed	20MHz
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	14KB 8K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Supply Current-Max	2.1mA
Bit Size	8
Data Converter	A/D 17x10b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
ROM (words)	8192
EEPROM Size	--
On Chip Program ROM Width	14
Boundary Scan	NO
Low Power Mode	YES
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	512
Number of Timers	3
Number of External Interrupts	1
On Chip Data RAM Width	8
Device Core	PIC
Length	6mm
Height Seated (Max)	1mm
Width	6mm
RoHS Status	ROHS3 Compliant

PIC16LF1516-E/ML Product Details

PIC16LF1516-E/ML Overview

In a 28-VQFN Exposed Pad package, the MCU is available. 25 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. PIC® XLP™ 16F series components make up this electrical component. 14KB 8K x 14 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 28 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 3V volt supply output on the chip. DMA channels number NO. 14kB is the memory size of the part. The base part number PIC16LF1516 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 20MHz. The device works in YES PWM channels. Located on the chip are 28 pins. I would like to mention a few additional features such as ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 16 MHZ in order to name a few. This part contains 1 external interrupts which provide a high level of flexibility. It is possible to have 3 bits in a IC chip.
