Name: TMS320F243PGEA
Brand: Texas Instruments
SKU: TMS320F243PGEA
Availability: InStock

new-10%

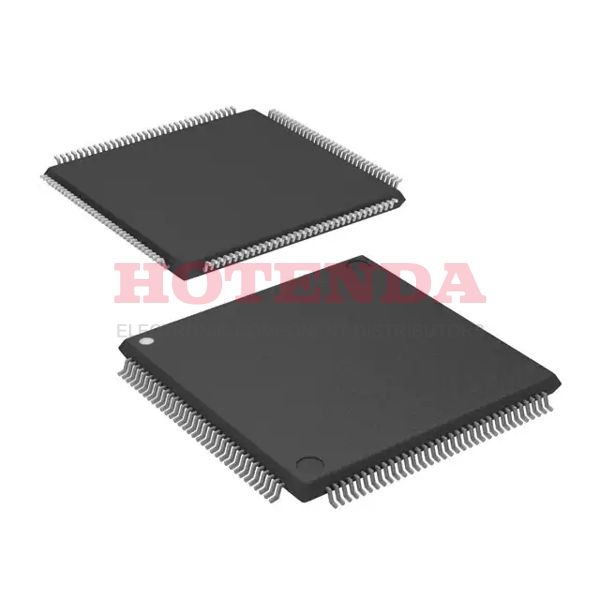

TMS320F243PGEA

Manufacturer part number:TMS320F243PGEA

Manufacturer:Texas Instruments

Description:16KB 8K x 16 FLASH C2xx DSP 16-Bit Microcontroller C2000™ C24x 16-Bit Series 320F243 144 Pin 20MHz 5V 144-LQFP

Case Package:SOT-23

Datasheet:TMS320F243PGEA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	144-LQFP
Number of Pins	144
Weight	1.290414g
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	C2000™ C24x 16-Bit
JESD-609 Code	e4
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	144
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.5mm
Frequency	20MHz
Base Part Number	320F243
Pin Count	144
Operating Supply Voltage	5V
Power Supplies	5V
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	32
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	C2xx DSP
Peripherals	POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	16KB 8K x 16
Connectivity	CANbus, EBI/EMI, SCI, SPI, UART/USART
Bit Size	16
Data Converter	A/D 8x10b
Data Bus Width	16b
Address Bus Width	16
Boundary Scan	YES
Low Power Mode	YES
Format	FIXED POINT
RAM (words)	544
Barrel Shifter	YES
Internal Bus Architecture	MULTIPLE
Length	20mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

TMS320F243PGEA Product Details

TMS320F243PGEA Description

The TMS320F243PGEA falls under the MCU (Microcontrollers) group. It is used in a variety of industries, including projectors, communications equipment, datacom modules, and advanced driver assistance systems (ADAS) for vehicles. The primary specifications of this component are as follows: 16-bit, 5V fixed point DSP with Flash 144-LQFP, -40 to 85. It is also environmentally friendly and RoHS compliant (lead free).
