Name: PIC16LC717T/SS
Brand: Microchip Technology
SKU: PIC16LC717T/SS
Availability: InStock

new-10%

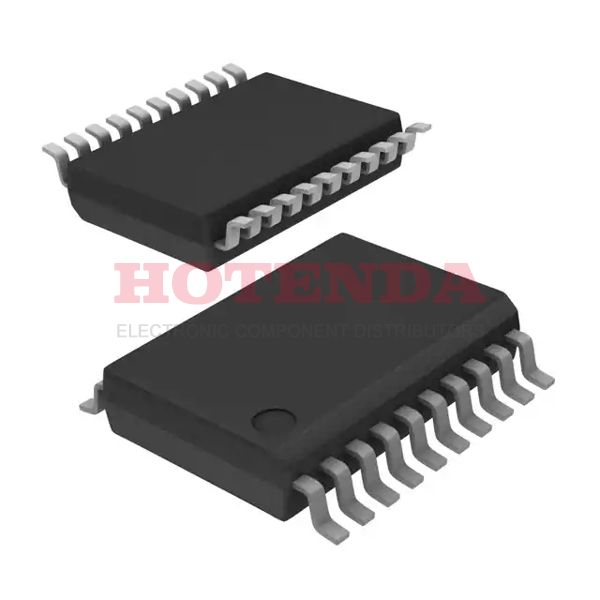

PIC16LC717T/SS

Manufacturer part number:PIC16LC717T/SS

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16LC717 20 Pin 20MHz 5V 20-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16LC717T/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Number of Pins	20
Supplier Device Package	20-SSOP
Interfaces	I2C/SPI
Package	Tape & Reel (TR)
Base Product Number	PIC16LC717
Mfr	Microchip Technology
Data Converters	A/D 6x10b
Product Status	Active
Operating Temperature	0°C~70°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 16C
Published	2002
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
Terminal Finish	Matte Tin (Sn)
Additional Feature	OPERATES AT 2.5V MINIMUM SUPPLY
Max Power Dissipation	1W
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LC717
Pin Count	20
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.5V
Interface	I2C, SPI, SSP
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	15
Speed	20MHz
RAM Size	256 x 8
Memory Type	EPROM
Voltage - Supply (Vcc/Vdd)	2.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, SPI
Bit Size	8
Data Converter	A/D 6x10b
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
EEPROM Size	-
On Chip Program ROM Width	14
CPU Family	PIC
Number of Programmable I/O	16
Device Core	PIC
Length	7.2mm
Height Seated (Max)	1.98mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16LC717T/SS Product Details

PIC16LC717T/SS Overview

In a 20-SSOP (0.209, 5.30mm Width) package, the MCU is available. 15 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a OTP type of memory for its program. There is a temperature range of 0°C~70°C TA that is operated by this Microcontroller. PIC® 16C series components make up this electrical component. 3.5KB 2K x 14 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 20 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 3.5kB is the memory size of the part. The base part number PIC16LC717 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 20MHz. The device works in YES PWM channels. Located on the chip are 20 pins. The clock has 3 timers or counters on it. There are 20 pins on it. In this device, there is a PIC CPU embedded within it. It has built-in EPROM memory. It programs in 16 Programmable I/O. I would like to mention a few additional features such as OPERATES AT 2.5V MINIMUM SUPPLY in order to name a few.
