Name: PIC18F66K22-I/MRRSL
Brand: Microchip Technology
SKU: PIC18F66K22-I/MRRSL
Availability: InStock

new-10%

PIC18F66K22-I/MRRSL

Manufacturer part number:PIC18F66K22-I/MRRSL

Manufacturer:Microchip Technology

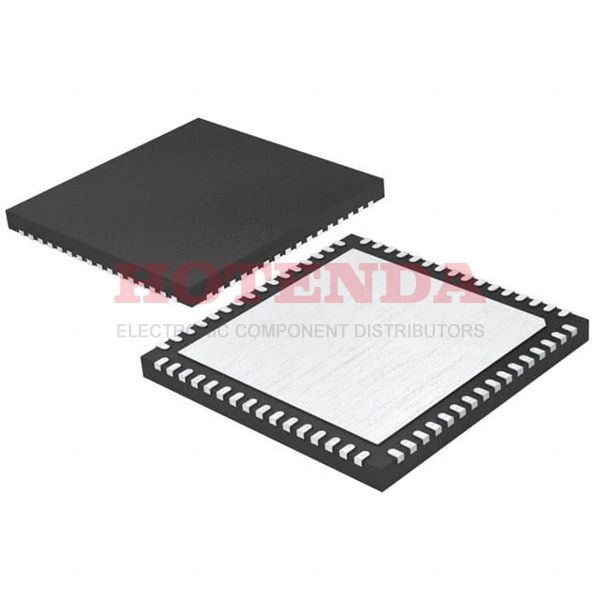

Description:64KB 32K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18F66K22 64 Pin 64MHz 3.3V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18F66K22-I/MRRSL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Interfaces	I2C/SPI/USART
Data Converters	A/D 16x12b
Package	Tube
Base Product Number	PIC18F66
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® XLP™ 18K
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES WITH 1.8 V MIN SUPPLY AT 4 MHZ
HTS Code	8542.31.00.01
Max Power Dissipation	1W
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	64MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18F66K22
Pin Count	64
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5V
Supply Voltage-Min (Vsup)	3V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	53
Speed	64MHz
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 32K x 16
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	32
Data Converter	A/D 16x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
DAC Channels	NO
Number of Timers/Counters	11
EEPROM Size	1K x 8
On Chip Program ROM Width	8
CPU Family	PIC
Screening Level	TS 16949
Number of PWM Channels	10
Device Core	PIC
Length	9mm
Height Seated (Max)	1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC18F66K22-I/MRRSL Product Details

PIC18F66K22-I/MRRSL Overview

This Microcontroller comes in a 64-VFQFN Exposed Pad package. This Microcontroller has 53 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 18K Series. The size of the program memory of Microcontroller is 64KB 32K x 16. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 64 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has NO DMA channels. The part owns 64kB memory size. You can find alternatives through the base part number PIC18F66K22. MCU's frequency is 64MHz. The pin number of the component remains 64. It has 11 timers/counters. It counts 64 pins. The device is embedded with PIC CPU family. To name a few, there are additional features like ALSO OPERATES WITH 1.8 V MIN SUPPLY AT 4 MHZ. 10 PWM channels are used by the device.
