Name: PIC16F628A-I/P
Brand: Microchip Technology
SKU: PIC16F628A-I/P
Price: 3.28000 USD
Availability: InStock

new-10%

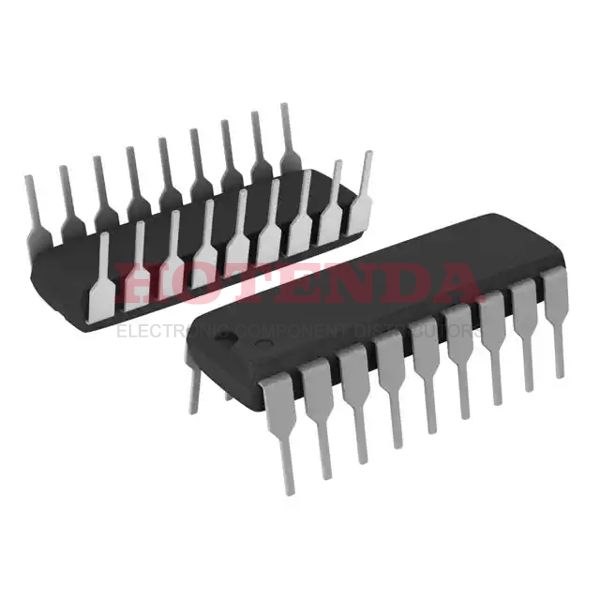

PIC16F628A-I/P

Manufacturer part number:PIC16F628A-I/P

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 FLASH PIC 8-Bit Microcontroller PIC® 16F Series PIC16F628A 18 Pin 20MHz 5V 18-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:PIC16F628A-I/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	18-DIP (0.300, 7.62mm)
Number of Pins	18
Supplier Device Package	18-PDIP
Weight	4.535924g
Mounting Style	Through Hole
Interfaces	USART
Enclosure	PDIP 18
Manuf. code	MCP
Max. operating temperature	+85°C
Manufacturer	Microchip Technology
Instruction Set Architecture	RISC
Clock Freq	20(MHz)
Operating Temperature Classification	Industrial
Package Type	PDIP
Number of Timers - General Purpose	3
Operating Temp Range	-40C to 85C
# I/Os (Max)	16
Power Dissipation (Max)	800(mW)
Interface Type	SCI/USART
Total Internal Ram Size	224B(kB)
Device Core Size	8(b)
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Typ)	3.3/5(V)
Rad Hardened	No
Operating Supply Voltage (Min)	3(V)
Programmable	Yes
Maximum Expanded Memory Size	64KB
Mounting	Through Hole
Package	Tube
Base Product Number	PIC16F628
Mfr	Microchip Technology
Data Converters	-
Product Status	Active
Family Name	PIC16F
Dimensions	0.92 x 0.28 x 0.19in
Typical Operating Supply Voltage	3 → 5.5 V
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
MSL	-
Qualification	-
Number of I/Os	16 I/O
Brand	Microchip Technology / Atmel
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16F
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	18
ECCN Code	EAR99
Type	PIC16F628A-I/P
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Max Power Dissipation	800mW
Terminal Position	DUAL
Supply Voltage	5V
Terminal Pitch	2.54mm
Frequency	20MHz
Base Part Number	PIC16F628A
Pin Count	18
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	4.5V
Interface	SCI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	3 V
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	16
Nominal Supply Current	600μA
Speed	20MHz
RAM Size	224 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	8
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	UART/USART
Bit Size	8
Watchdog Timer	Yes
Access Time	20 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
DAC Channels	NO
Number of Timers/Counters	3
Address Bus Width	8b
Product Type	8-bit Microcontrollers - MCU
Density	28 kb
Core Architecture	PIC
EEPROM Size	128 x 8
CPU Family	PIC
Max Frequency	20 MHz
Number of Programmable I/O	16
Number of PWM Channels	1
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Height	4.953mm
Length	23.37mm
Width	7.112mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16F628A-I/P Product Details

PIC16F628A-I/P Overview

Packaged in a 18-DIP (0.300, 7.62mm) format, this MCU is available in a compact size. There are 16 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Through Hole mounting type. 8-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The PIC® 16F series includes this electrical component. There is 3.5KB 2K x 14 bytes of program memory in MCU, which corresponds to the size of the program. With a PIC Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 18 terminations were applied to the IC chip. 8-bits are used in Microcontroller. The MCU chip's supply output is 5V volts. Currently, MCU chip has NO DMA channels. 3.5kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number PIC16F628A. In the case of 20MHz frequency operation, it can perform efficiently. The chip has 18 pins. The clock has 3 timers/counters to keep track of the time. 18 pins are counted on this board. This device is embedded with a PIC processor family, which is a powerful and efficient CPU. There is a FLASH memory feature on this equipment. With PIC core architecture, it offers high performance. A total of 16 programmable I/Os are available on this board. There are 8 bits in total on an IC chip. There are 1 PWM channels that are used by the device.
