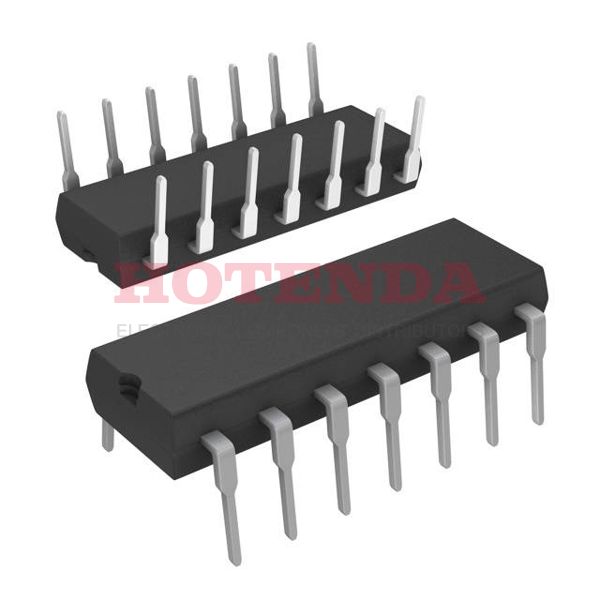

PIC16F506-E/P Overview
14-DIP (0.300, 7.62mm)-packages are available. There are 11 I/O ports on this device. Device mounting type Through Hole is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® 16F series. This program memory has a size of 1.5KB 1K x 12, which indicates what the size of the program memory is. PIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 14 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 1.5kB. The base part number PIC16F506 provides alternatives. This device is extremely efficient when operated at a frequency of 20MHz. Using the PWM channel NO, the device works with the motor. In this chip, 14 pins can be accessed. Using the timer/counter system, it has 1 timers/counters. It has 14 pins in total. In addition to this, the device is embedded with the the PIC CPU family. There is FLASH memory in this equipment. As a result of its PIC core architecture, it can be used in many applications. This device has 12 programmable input and output channels. Some of these features include ALSO OPERATES AT MINIMUM 2V AT 4MHZ, for example, as one example. In total, it has 3 Channel ADC channels for the measurement of signals.
PIC16F506-E/P Features
14-DIP (0.300, 7.62mm) package
Mounting type of Through Hole
Minimum temperature of -40 °C
PIC16F506-E/P Applications
There are a lot of Microchip Technology
PIC16F506-E/P Microcontroller applications.
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
