Name: PIC16C58B-04I/SO
Brand: Microchip Technology
SKU: PIC16C58B-04I/SO
Price: 2.97000 USD
Availability: InStock

new-10%

PIC16C58B-04I/SO

Manufacturer part number:PIC16C58B-04I/SO

Manufacturer:Microchip Technology

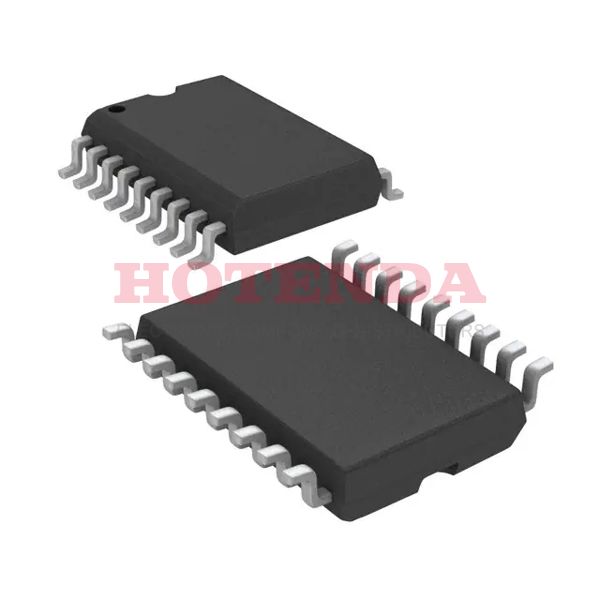

Description:3KB 2K x 12 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16C58B 18 Pin 4MHz 5V 18-SOIC (0.295, 7.50mm Width)

Case Package:SOT-23

Datasheet:PIC16C58B-04I/SO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	18-SOIC (0.295, 7.50mm Width)
Number of Pins	18
Supplier Device Package	18-SOIC
Mounting Style	SMD/SMT
Number of I/Os	12 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC16C58
Mfr	Microchip Technology
Data Converters	-
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1998
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	18
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	800mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Frequency	4MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16C58B
Pin Count	18
Operating Supply Voltage	5V
Memory Size	2kB
Oscillator Type	External
Number of I/O	12
Speed	4MHz
RAM Size	73 x 8
Memory Type	EPROM, OTP
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	8
Core Processor	PIC
Peripherals	POR, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	3KB 2K x 12
Connectivity	-
Supply Current-Max	2.4mA
Bit Size	8
Watchdog Timer	Yes
Access Time	4 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	1
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	-
On Chip Program ROM Width	12
CPU Family	PIC
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Height Seated (Max)	2.64mm
Width	7.49 mm
Height	2.31 mm
Length	11.53 mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16C58B-04I/SO Product Details

PIC16C58B-04I/SO Overview

It comes in a 18-SOIC (0.295, 7.50mm Width) package. It has a number of 12I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is OTP. The device runs in -40??C~85??C TA Operating Temperature. It runs in PIC? 16C Series.

PIC16C58B-04I/SO Features

PIC? 16C series
Base part number of PIC16C58B
The memory type of EPROM, OTP
18 Terminals
Based on the 8-Bit
Comes with 18 Pins

PIC16C58B-04I/SO Applications

There are a lot of Microchip Technology PIC16C58B-04I/SO Microcontroller applications. PIC16C58B-04I/SO MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
