Name: MIC94310-PYCS-TR
Brand: Microchip Technology
SKU: MIC94310-PYCS-TR
Availability: InStock

new-10%

MIC94310-PYCS-TR

Manufacturer part number:MIC94310-PYCS-TR

Manufacturer:Microchip Technology

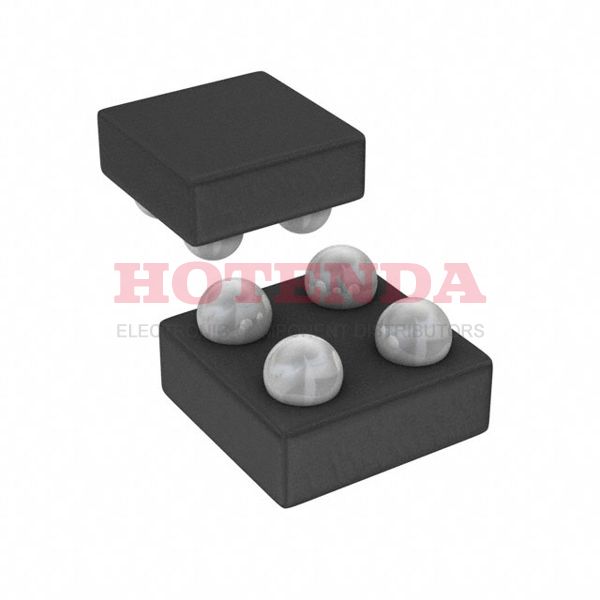

Description:Enable Fixed MIC94310 PMIC Ripple Blocker™ Series 4-UFBGA, WLCSP

Case Package:SOT-23

Datasheet:MIC94310-PYCS-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	4-UFBGA, WLCSP
Surface Mount	YES
Supplier Device Package	4-WLCSP (0.88x0.88)
Number of Terminals	4
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC94310
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	Ripple Blocker™
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Technology	CMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Number of Functions	1
Reach Compliance Code	compliant
Base Part Number	MIC94310
JESD-30 Code	S-PBGA-B4
Voltage - Input (Max)	3.6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	200mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	250μA
Voltage Dropout (Max)	0.1V @ 200mA
PSRR	85dB ~ 50dB (100Hz ~ 10MHz)
Output Voltage1-Max	3.09 V
Output Voltage1-Min	2.91 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.1 V
Screening Level	TS 16949
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
RoHS Status	ROHS3 Compliant

MIC94310-PYCS-TR Product Details

MIC94310-PYCS-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 4-UFBGA, WLCSP package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 200mA. FYI, the basic part number for this IC regulator is MIC94310. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the Ripple Blocker™ Series.
