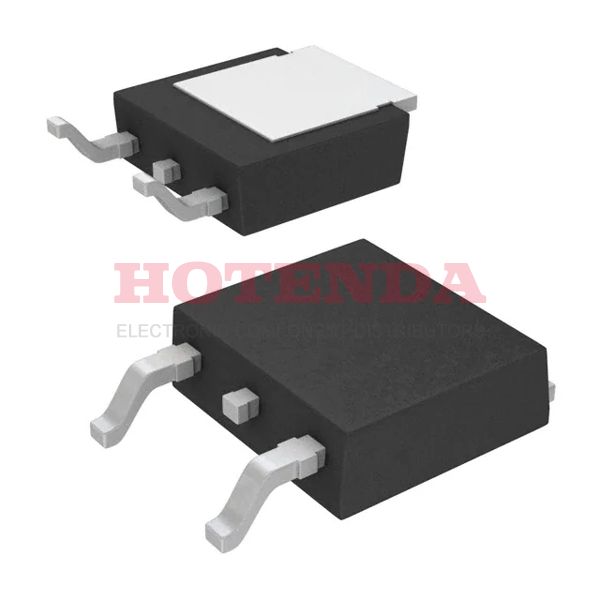

Name: TLE4274DV33ATMA1
Brand: Infineon Technologies
SKU: TLE4274DV33ATMA1
Availability: InStock

new-10%

TLE4274DV33ATMA1

Manufacturer part number:TLE4274DV33ATMA1

Manufacturer:Infineon Technologies

Description:Fixed 2.28mm PMIC Automotive, AEC-Q100, OPTIREG™ Series 3 TO-252-3, DPak (2 Leads + Tab), SC-63

Case Package:SOT-23

Datasheet:TLE4274DV33ATMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Surface Mount	YES
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, OPTIREG™
Published	2008
JESD-609 Code	e3
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	2.28mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSSO-G2
Current - Supply (Max)	30mA
Qualification Status	Not Qualified
Voltage - Input (Max)	40V
Output Type	Fixed
Output Configuration	Positive
Current - Output	400mA
Output Voltage 1	3.3V
Input Voltage (Min)	4.7V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Current - Quiescent (Iq)	220μA
Voltage Dropout (Max)	1.2V @ 300mA
PSRR	60dB (100Hz)
Output Voltage1-Max	3.44V
Length	6.5mm
Height Seated (Max)	2.5mm
Width	6.22mm
RoHS Status	RoHS Compliant

TLE4274DV33ATMA1 Product Details

TLE4274DV33ATMA1 Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-252-3, DPak (2 Leads + Tab), SC-63 case. On the regulater IC chip, there are a total of 2 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~150°C TJ degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 400mA. A total of 3 pins can be found on the board. This model is a part of the Automotive, AEC-Q100, OPTIREG™ Series and is of high quality.
