Name: MIC5265-1.8YD5-TR
Brand: Microchip Technology
SKU: MIC5265-1.8YD5-TR
Price: 0.43000 USD
Availability: InStock

new-10%

MIC5265-1.8YD5-TR

Manufacturer part number:MIC5265-1.8YD5-TR

Manufacturer:Microchip Technology

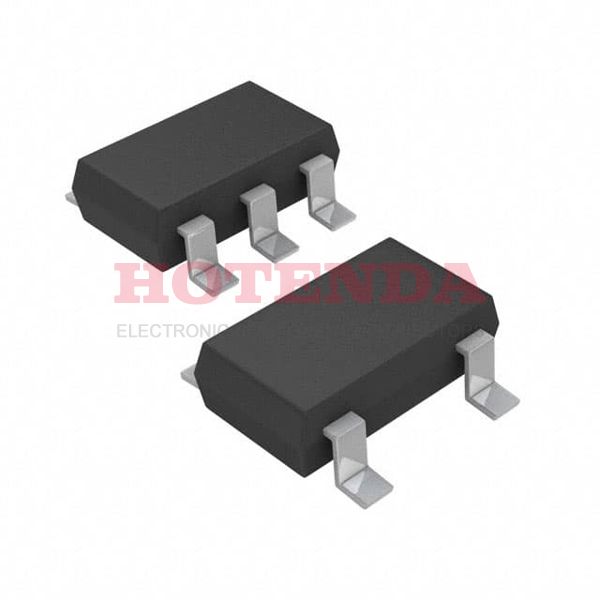

Description:Enable Fixed 0.95 mm MIC5265 PMIC -- Series 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MIC5265-1.8YD5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Supplier Device Package	TSOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	TSOT-23
Input Voltage Range	2.7 to 5.5 V
Mounting	Surface Mount
Dropout Voltage@Current (Max)	0.5@150mA
Package Type	TSOT-23
Operating Temp Range	-40C to 125C
Dimensions	2.9 x 1.6 x 1.1mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Maximum Input Voltage	5.5 V
MSL	MSL 1 - Unlimited
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5265
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
Tolerance	3 %
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	LDO
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5265
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	150μA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	150mA
Polarity	Positive
Output Configuration	Positive
Output Current	150 mA
Current - Output	150mA
Quiescent Current	2(uA)
Control Features	Enable
Accuracy	±3%
Input Voltage (Min)	2.7(V)
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Min Input Voltage	2.7V
Protection Features	Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	2μA
Voltage Dropout (Max)	0.5V @ 150mA
Max Input Voltage	5.5V
PSRR	64dB ~ 62dB (1kHz ~ 100Hz)
Seated Height-Max	1.45 mm
Dropout Voltage	210mV
Product Type	LDO Voltage Regulators
Min Output Voltage	1.8V
Power Supply Rejection Ratio (PSRR)	64dB
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	Low Dropout Voltage
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Line Regulation	0.2%
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	3%
Input Voltage	5.5(V)
Product Category	LDO Voltage Regulators
Width	1.6mm
Height	1.1mm
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5265-1.8YD5-TR Product Details

MIC5265-1.8YD5-TR Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a SOT-23-5 Thin, TSOT-23-5 case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 150mA. As you can see, the regulator IC has a total of 5 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. For your information, part number MIC5265 is the basic part number for this voltage regulator IC. As you can see, this regulator IC represents a typical PMIC - Power Management ICs component. As far as the regulator type, it is a Low Dropout Voltage type. There is a maximum output current of 150mA for this regulator to meet the operational requirements. It operates in the 2(uA) Quiescent Current state. The -- Series is a series of products made by D-Link. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 125°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -40°C. In regards to tolerance, this voltage regulator IC has an 3 % tolerance, which is quite low.
