Name: MIC2215-AAAYML-TR
Brand: Microchip Technology
SKU: MIC2215-AAAYML-TR
Price: 2.36000 USD
Availability: InStock

new-10%

MIC2215-AAAYML-TR

Manufacturer part number:MIC2215-AAAYML-TR

Manufacturer:Microchip Technology

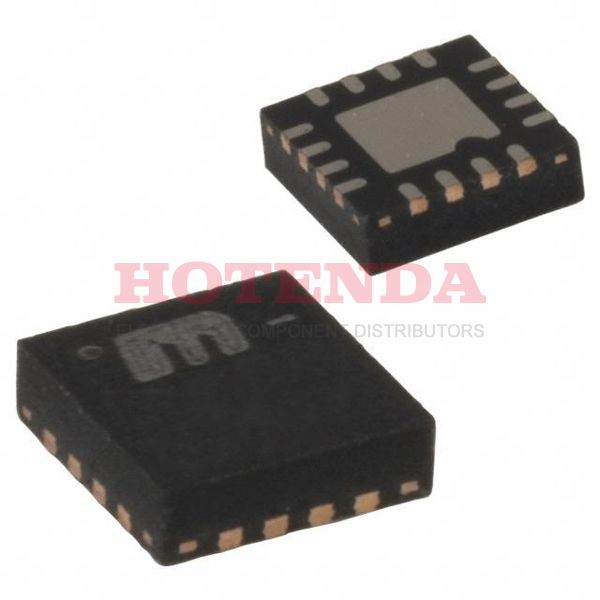

Description:Enable Adjustable 0.65 mm MIC2215 PMIC -- Series 16 16-VQFN Exposed Pad, 16-MLF®

Case Package:SOT-23

Datasheet:MIC2215-AAAYML-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad, 16-MLF®
Surface Mount	YES
Number of Pins	16
Supplier Device Package	16-MLF® (4x4)
Number of Terminals	16
Mounting Style	SMD/SMT
Polarity Type	Positive
Regulator Output Type	Adjustable
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.15@150mA
Operating Temperature Classification	Automotive
Package Type	QFN EP
Operating Temp Range	-40C to 125C
Rad Hardened	No
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC2215
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	--
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MIC2215
Pin Count	16
JESD-30 Code	S-XQCC-N16
Current - Supply (Max)	550μA
Number of Outputs	3
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	5.5V
Output Type	Adjustable
Max Output Current	250mA
Polarity	Positive
Number of Channels	1
Output Configuration	Positive
Output Current	250(mA)
Current - Output	250mA, 250mA, 250mA
Quiescent Current	1μA
Control Features	Enable
Accuracy	1 %
Input Voltage (Min)	2.25(V)
Voltage - Output (Min/Fixed)	1.25V
Topology	LDO
Number of Regulators	3
Min Input Voltage	2.25V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.275V @ 250mA 0.275V @ 250mA 0.275V @ 250mA
Max Input Voltage	5.5V
PSRR	70dB ~ 45dB (100Hz ~ 1kHz)
Seated Height-Max	0.9 mm
Current - Output 1	250mA
Dropout Voltage	170mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	5.225 V
Output Voltage1-Min	1.25 V
Regulator Type	ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.25 A
Voltage - Output (Max)	5.225V
Dropout Voltage1-Max	0.275 V
Min Current Limit	350mA
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	1 %
Current - Output 2	250mA
Line Regulation	0.015%/V
Operating Temperature TJ-Min	-40 °C
Load Regulation	0.3%
Product	LDO Voltage Regulators
Output Voltage2-Max	5.225 V
Output Voltage2-Min	1.25 V
Output Current2-Max	0.25 A
Dropout Voltage2-Max	0.275 V
Input Voltage	5.5(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	0.001 mA
Height	800μm
Length	3mm
Width	3mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC2215-AAAYML-TR Product Details

MIC2215-AAAYML-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 16-VQFN Exposed Pad, 16-MLF® package. The IC chip's output type is Adjustable. This electronic component implements 3 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 250mA, 250mA, 250mA. IC voltage regulator has a sum of 16 pins. To ensure prompt, sufficient performance, this part features 3 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 16. FYI, the basic part number for this IC regulator is MIC2215. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR. It works in 250mA output current at mostIt operates in the 1μA Quiescent Current state. It is part of the -- Series. The regulator operates with a maximum operating temperature of 125°C. At the very least, the voltage regulator IC works with a -40°C operating temperature. This IC regulator has 1 channels each of which has its own purpose to maintain the system working.
