Name: MIC5211-3.6BM6-TR
Brand: Microchip Technology
SKU: MIC5211-3.6BM6-TR
Availability: InStock

new-10%

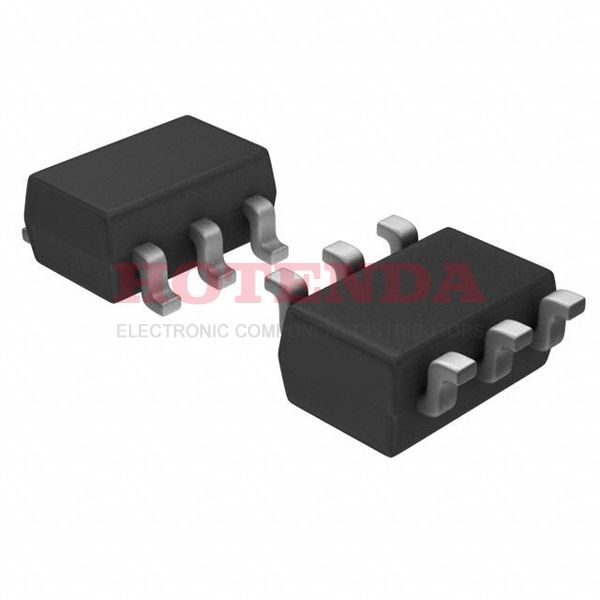

MIC5211-3.6BM6-TR

Manufacturer part number:MIC5211-3.6BM6-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5211 PMIC -- Series 6 SOT-23-6

Case Package:SOT-23

Datasheet:MIC5211-3.6BM6-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Surface Mount	YES
Supplier Device Package	SOT-23-6
Number of Terminals	6
Package	Tape & Reel (TR)
Base Product Number	MIC5211
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5211
Pin Count	6
JESD-30 Code	R-PDSO-G6
Current - Supply (Max)	1.2mA
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	80mA, 80mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3.6V 3.6V
Number of Regulators	2
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	450μA
Voltage Dropout (Max)	0.5V @ 50mA 0.5V @ 50mA
PSRR	--
Seated Height-Max	1 mm
Output Voltage1-Max	3.744 V
Output Voltage1-Min	3.456 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.08 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.6 V
Output Voltage2-Max	3.744 V
Output Voltage2-Min	3.456 V
Output Current2-Max	0.08 A
Dropout Voltage2-Max	0.5 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5211-3.6BM6-TR Product Details

MIC5211-3.6BM6-TR Overview

An Tape & Reel (TR) case is included with the delivery. There is a SOT-23-6 case with the integrated voltage regulator. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 2 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 80mA, 80mAmp current output on this voltage regulator IC. It has a total of 6 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 2 outputs in total. It is MIC5211 for this regulator, just for your information. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. This regulator IC is a part of the -- Series.
