PQ070XH02ZZH Overview

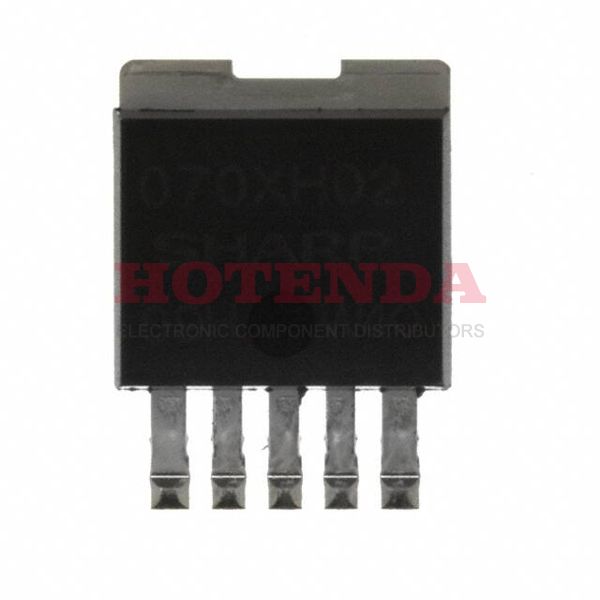

A Tube case is used to deliver the Voltage Regulated IC. A TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case is used for packaging. As you can see, the IC chip has 5 terminations. Regulator IC chip's output type is Adjustable. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 2A. The dropout voltage of the regulator IC is 10 volts.
PQ070XH02ZZH Features
500mV dropout voltage
PQ070XH02ZZH Applications
There are a lot of Sharp Microelectronics
PQ070XH02ZZH Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
