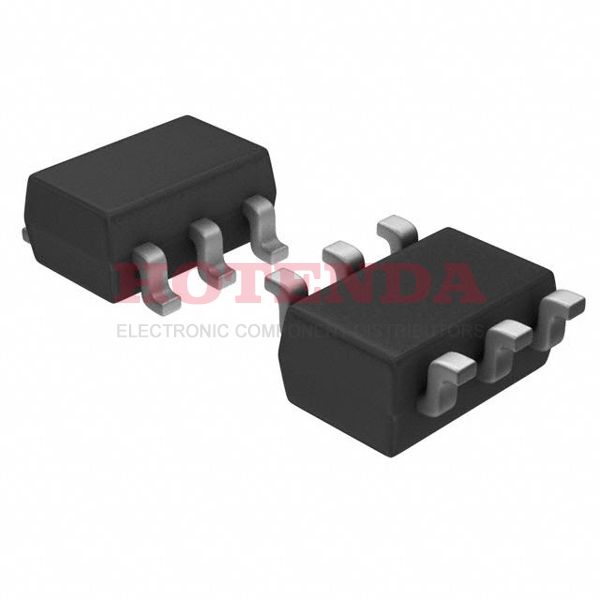

Name: MIC5211-3.0BM6-TR
Brand: Microchip Technology
SKU: MIC5211-3.0BM6-TR
Availability: InStock

new-10%

MIC5211-3.0BM6-TR

Manufacturer part number:MIC5211-3.0BM6-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5211 PMIC -- Series 6 SOT-23-6

Case Package:SOT-23

Datasheet:MIC5211-3.0BM6-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Surface Mount	YES
Supplier Device Package	SOT-23-6
Number of Terminals	6
Package	Tape & Reel (TR)
Base Product Number	MIC5211
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5211
Pin Count	6
JESD-30 Code	R-PDSO-G6
Current - Supply (Max)	1.2mA
Number of Outputs	2
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	80mA, 80mA
Control Features	Enable
Voltage - Output (Min/Fixed)	3V 3V
Number of Regulators	2
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	450μA
Voltage Dropout (Max)	0.5V @ 50mA 0.5V @ 50mA
PSRR	--
Seated Height-Max	1 mm
Output Voltage1-Max	3.12 V
Output Voltage1-Min	2.88 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.08 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Output Voltage2-Max	3.12 V
Output Voltage2-Min	2.88 V
Output Current2-Max	0.08 A
Dropout Voltage2-Max	0.5 V
Width	1.6 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5211-3.0BM6-TR Product Details

MIC5211-3.0BM6-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. Packaged in a SOT-23-6 case, the battery regulator IC is protected from damage during shipment. The IC chip's output type is Fixed. This electronic component implements 2 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 80mA, 80mA. There are totally 6 pins on this chip. To ensure prompt, sufficient performance, this part features 2 outputs in total. FYI, the basic part number for this IC regulator is MIC5211. The regulator type for this IC regulator is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. It is part of the -- Series.
