Name: BD3508EKN-E2
Brand: ROHM Semiconductor
SKU: BD3508EKN-E2
Availability: InStock

new-10%

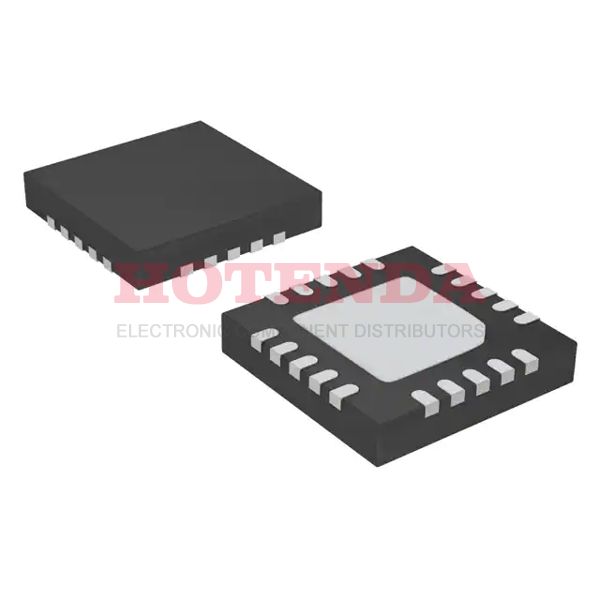

BD3508EKN-E2

Manufacturer part number:BD3508EKN-E2

Manufacturer:ROHM Semiconductor

Description:Enable, Soft Start Adjustable 0.5mm BD3508 PMIC 20 20-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:BD3508EKN-E2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Operating Temperature	-10°C~100°C
Packaging	Tape & Reel (TR)
Published	2008
JESD-609 Code	e3/e2
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
ECCN Code	EAR99
Terminal Finish	TIN/TIN COPPER
Max Power Dissipation	2W
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	10
Base Part Number	BD3508
Pin Count	20
JESD-30 Code	S-XQCC-N20
Qualification Status	Not Qualified
Voltage - Input (Max)	4.5V
Output Voltage	2.7V
Output Type	Adjustable
Max Output Current	3A
Output Configuration	Positive
Control Features	Enable, Soft Start
Voltage - Output (Min/Fixed)	0.65V
Number of Regulators	1
Min Input Voltage	750mV
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Voltage Dropout (Max)	0.1V @ 1A
Dropout Voltage	65mV
Min Current Limit	3A
Length	4.2mm
Height Seated (Max)	0.95mm
Width	4.2mm
RoHS Status	ROHS3 Compliant

BD3508EKN-E2 Product Details

BD3508EKN-E2 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 20-VFQFN Exposed Pad package. There are 20 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -10°C~100°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 20 pins. Its dropout voltage is 10 volts. FYI, the basic part number for this IC regulator is BD3508. It works in 3A output current at most
