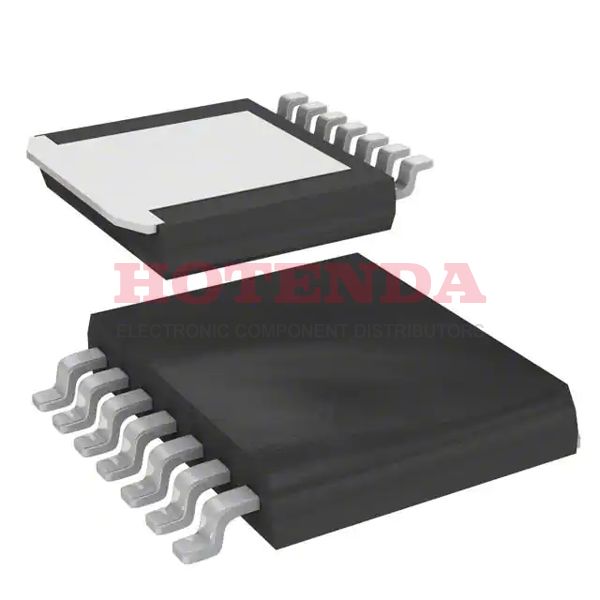

MIC4685BR TR Overview
For optimal performance, this voltage regulator uses the Tape & Reel (TR) package. In order to save space, this voltage regulator is packaged in the SPak-7 (7 leads + Tab) package. 1 outputs of voltage regulator are configured. ICs such as this voltage regulator are capable of generating Adjustable outputs through their output pins. A Surface Mount mounting is required for this switching regulator. -40°C~125°C TJ should be the operating temperature when voltage regulator is operating. A DC-DC switching regulator such as this one switches at 200kHz. Input voltage 4V is the dc to dc voltage regulator's minimum input voltage required for operation of the voltage regulators. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 1.235V. A maximum design flexibility is provided by the 3A output current of voltage regulator. 30V volts is DC DC switching regulator's maximum input voltage. This DC/DC regulator belongs to the MIC4685 family. 28.2V's maximal output voltage allows adjusting voltage regulator to operate easily. The switching DC-DC regulator belongs to the SuperSwitcher? family of electronic voltage regulator 12vs.
MIC4685BR TR Features
1 outputs
MIC4685BR TR Applications
There are a lot of Microchip Technology MIC4685BR TR Voltage Regulators applications.
- Computed tomography (CT)
- Digital display device
- Various CNC machine tools
- Lathes
- seismic instrument power circuits
- Smoke prevention equipment
- Flexible manufacturing cells
- Fire elevators
- Mobile phones
- Balance equipment
