Name: MIC39300-2.5WU
Brand: Microchip Technology
SKU: MIC39300-2.5WU
Price: 4.49000 USD
Availability: InStock

new-10%

MIC39300-2.5WU

Manufacturer part number:MIC39300-2.5WU

Manufacturer:Microchip Technology

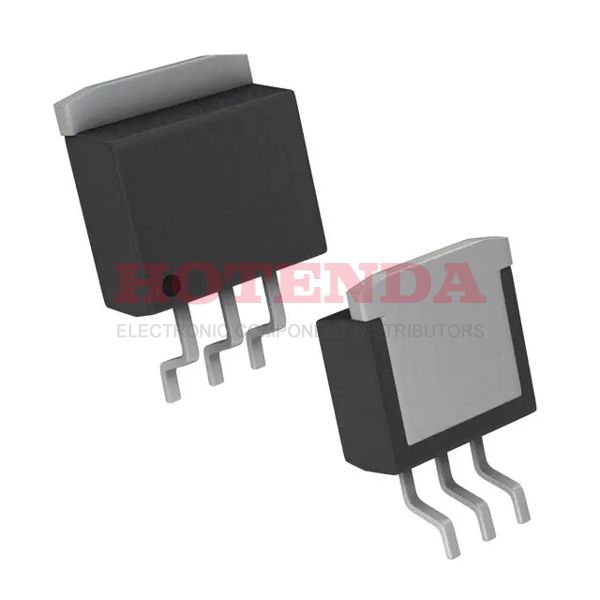

Description:-- Fixed 2.54mm MIC39300-2.5 PMIC -- Series 3 TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:MIC39300-2.5WU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Number of Pins	3
Supplier Device Package	TO-263-3
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	TO-263
Junction to Case	2 °C/W
Input Voltage Range	2.5 to 16 V
Maximum Input Voltage	16 V
Mounting	Surface Mount
Schedule B	8542390000, 8542390000/8542390000, 8542390000/8542390000/8542390000, 8542390000/8542390000/8542390000/8542390000
RoHS	Compliant
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Package	Tube
Base Product Number	MIC39300
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
Tolerance	1 %
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TUBE
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.54mm
Reach Compliance Code	not_compliant
Current Rating	3A
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MIC39300-2.5
Pin Count	3
JESD-30 Code	R-PSSO-G3
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Voltage	2.5V
Output Type	Fixed
Max Output Current	3A
Polarity	Positive
Number of Channels	1
Output Configuration	Positive
Output Current	3 A
Current - Output	3A
Quiescent Current	20mA
Control Features	--
Accuracy	1 %
Output Voltage 1	2.5V
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.55V @ 3A
Max Input Voltage	16 V
PSRR	--
Seated Height-Max	4.902 mm
Dropout Voltage	400mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.385 V
Min Output Voltage	2.5V
Output Voltage1-Max	2.55 V
Output Voltage1-Min	2.45 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.55 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	20 V
Nominal Output Voltage	2.5V
Adjustability	FIXED
Line Regulation	0.5 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.5 V
Load Regulation	1 %
Product Category	LDO Voltage Regulators
Height	4.6mm
Length	10.67mm
Width	9.17mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC39300-2.5WU Product Details

MIC39300-2.5WU Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in TO-263-4, D2Pak (3 Leads + Tab), TO-263AA case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 3A from this regulator IC. There are a total of 3 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 3 pins. For your information, the basic part number for this regulator IC is MIC39300-2.5. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. TUBE is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 3A. It operates in the 20mA Quiescent Current state. This IC regulator is a part of the -- Series of devices. You should use the regulator IC when the temperature is below 125 °C. It is not possible to operate the chip below -40 °C operating temperature. This IC regulator has a tolerance of 1 %, which is quite low. This voltage regulator IC has 1 channels, each with its own function to keep the system running.
