Name: MIC39100-5.0BS
Brand: Microchip Technology
SKU: MIC39100-5.0BS
Availability: InStock

new-10%

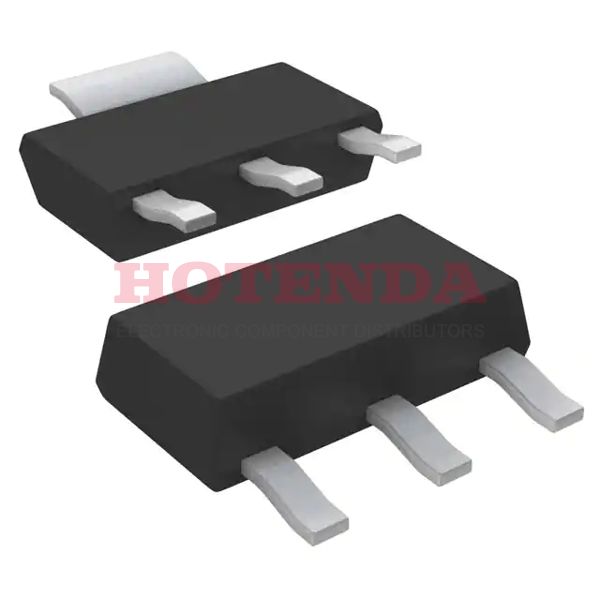

MIC39100-5.0BS

Manufacturer part number:MIC39100-5.0BS

Manufacturer:Microchip Technology

Description:-- Fixed 2.31 mm MIC39100-5.0 PMIC -- Series 4 TO-261-4, TO-261AA

Case Package:SOT-23

Datasheet:MIC39100-5.0BS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Supplier Device Package	SOT-223-3
Number of Terminals	4
Package	Tube
Base Product Number	MIC39100-5.0
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Rochester Electronics LLC
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Pbfree Code	Yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Terminal Finish	TIN LEAD
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	2.31 mm
Reach Compliance Code	unknown
Base Part Number	MIC39100-5.0
Pin Count	4
JESD-30 Code	R-PDSO-G4
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1A
Control Features	--
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.63V @ 1A
PSRR	--
Seated Height-Max	1.8 mm
Output Voltage1-Max	5.1 V
Output Voltage1-Min	4.9 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.63 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Width	3.505 mm
Length	6.5 mm
RoHS Status	Non-RoHS Compliant

MIC39100-5.0BS Product Details

MIC39100-5.0BS Overview

In a Tube case, the IC voltage regulator is delivered. A TO-261-4, TO-261AA case contains the Liner IC. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 1A. There are 4 pins in total on this board. It is MIC39100-5.0 for this voltage regulator IC, just for your information. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC. In fact, it is voltage regulator IC of the -- Series of cameras.
