PQ1L503M2SPQ Overview

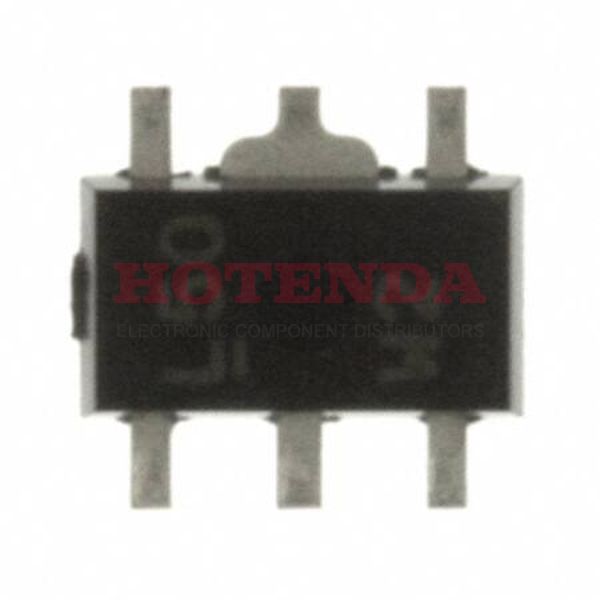

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a SOT-89-5/6 case. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -30°C~80°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 300mA. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 6 pins on the chip. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 300mA. It operates in the 500μA Quiescent Current state. If the temperature is below 80°C, it is recommended that you utilize this feature. It is recommended that the chip be operated at a temperature no lower than -30°C operating temperature.
PQ1L503M2SPQ Features
300mV dropout voltage
The maximum operating temperature of -30°C
PQ1L503M2SPQ Applications
There are a lot of Sharp Microelectronics
PQ1L503M2SPQ Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
