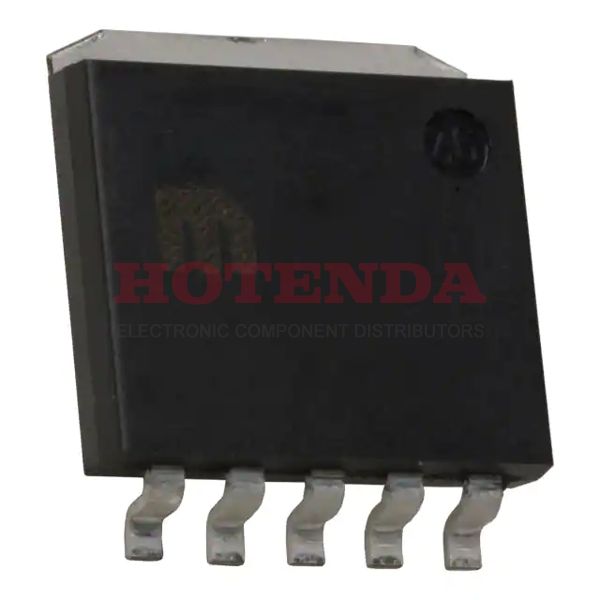

Name: MIC37252BR
Brand: Microchip Technology
SKU: MIC37252BR
Availability: InStock

new-10%

MIC37252BR

Manufacturer part number:MIC37252BR

Manufacturer:Microchip Technology

Description:Enable Adjustable 1.7 mm MIC37252 PMIC -- Series 5 SPak-5 (5 leads + Tab)

Case Package:SOT-23

Datasheet:MIC37252BR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SPak-5 (5 leads + Tab)
Surface Mount	YES
Supplier Device Package	S-PAK-5
Number of Terminals	5
Package	Tube
Base Product Number	MIC37252
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Micrel Inc
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2006
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	compliant
Base Part Number	MIC37252
Pin Count	5
JESD-30 Code	R-PSSO-G5
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	2.5A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.24V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	1V @ 2.5A
PSRR	--
Seated Height-Max	2.16 mm
Dropout Voltage1-Nom	0.55 V
Output Voltage1-Max	5.5 V
Output Voltage1-Min	1.24 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	2.5 A
Voltage - Output (Max)	5.5V
Dropout Voltage1-Max	1 V
Operating Temperature TJ-Max	125 °C
Adjustability	ADJUSTABLE
Load Regulation-Max(%)	1%
Line Regulation-Max (%/V)	0.13
Operating Temperature TJ-Min	-40 °C
Width	8 mm
Length	9.395 mm
RoHS Status	Non-RoHS Compliant

MIC37252BR Product Details
