Name: LP2987AILD-3.3
Brand: Texas Instruments
SKU: LP2987AILD-3.3
Availability: InStock

new-10%

LP2987AILD-3.3

Manufacturer part number:LP2987AILD-3.3

Manufacturer:Texas Instruments

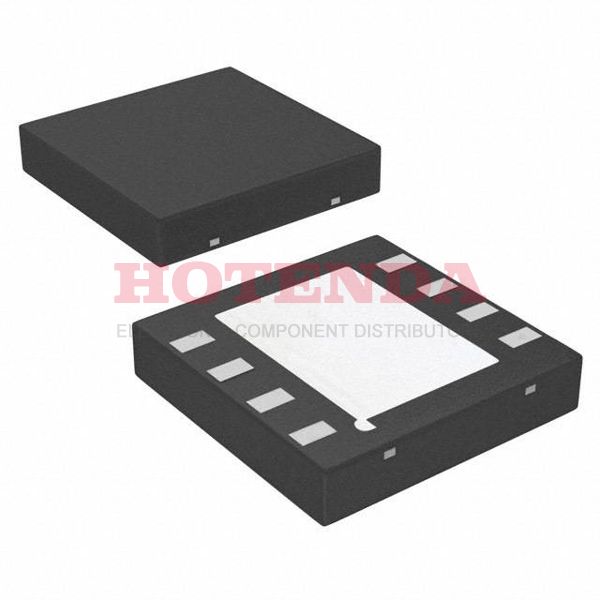

Description:Enable Fixed 0.8mm LP2987 PMIC 8 8-WDFN Exposed Pad

Case Package:SOT-23

Datasheet:LP2987AILD-3.3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	8
ECCN Code	EAR99
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.8mm
Base Part Number	LP2987
Pin Count	8
JESD-30 Code	S-PDSO-N8
Current - Supply (Max)	3.7mA
Voltage - Input (Max)	16V
Output Voltage	3.3V
Output Type	Fixed
Output Configuration	Positive
Current - Output	200mA
Control Features	Enable
Output Voltage 1	3.3V
Input Voltage (Min)	4.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	120μA
Voltage Dropout (Max)	0.35V @ 200mA
PSRR	65dB (1kHz)
Dropout Voltage	180mV
Min Current Limit	250mA
Length	4mm
Height Seated (Max)	0.8mm
Width	4mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

LP2987AILD-3.3 Product Details

LP2987AILD-3.3 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 8-WDFN Exposed Pad package. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 200mA. IC voltage regulator has a sum of 8 pins. Its dropout voltage is 10 volts. FYI, the basic part number for this IC regulator is LP2987.
