Name: MIC2941ABU TR
Brand: Microchip Technology
SKU: MIC2941ABU TR
Availability: InStock

new-10%

MIC2941ABU TR

Manufacturer part number:MIC2941ABU TR

Manufacturer:Microchip Technology

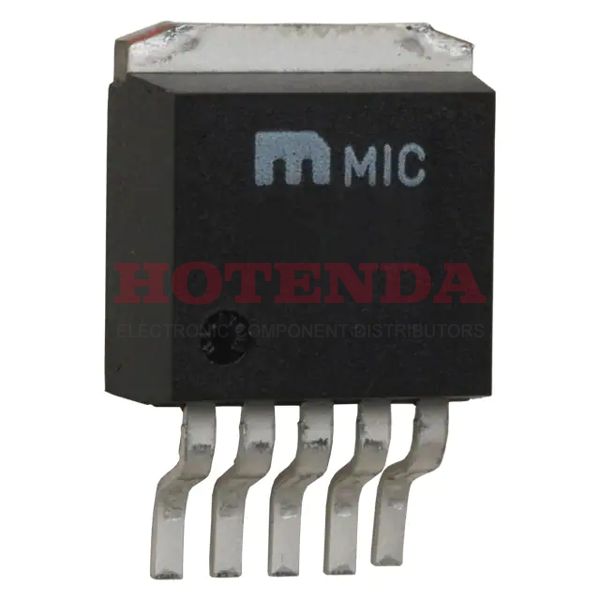

Description:Enable Adjustable 1.702 mm MIC2941A PMIC -- Series 4 TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC2941ABU TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Supplier Device Package	TO-263-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC2941A
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	--
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	1.702 mm
Reach Compliance Code	compliant
Base Part Number	MIC2941A
Pin Count	4
JESD-30 Code	R-PSSO-G5
Current - Supply (Max)	70mA
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1.25A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.24V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	500μA
Voltage Dropout (Max)	0.6V @ 1.25A
PSRR	--
Seated Height-Max	4.902 mm
Output Voltage1-Max	26 V
Output Voltage1-Min	1.24 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	1.25 A
Voltage - Output (Max)	26V
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Width	8.7755 mm
Length	10.363 mm
RoHS Status	Non-RoHS Compliant

MIC2941ABU TR Product Details

MIC2941ABU TR Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case is used. This IC Regulator has a type of output called Adjustable. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 1.25A. A total of 4 pins are located on this chip, making it the size of a standard chip. For your information, part number MIC2941A is the basic part number for this voltage regulator IC. As far as the regulator type, it is a ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR type. The -- Series is a series of products made by D-Link.
