NCP4641H030T1G Overview

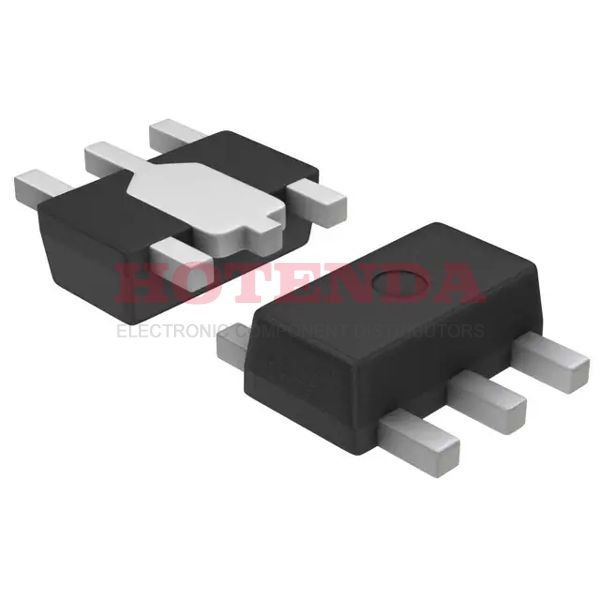

Deliveries are in Tape & Reel (TR) cases. The package is in a SOT-89-5/6 case. Basically, the voltage regulator chip is made up of 5 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~150°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 120mA on this regulator. The total number of pins in the regulator is 5. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. Several pins on the chip are 5-shaped. As an FYI, this IC voltage regulator has the basic part number NCP4641. Packing the voltage regulator IC in this way is called TAPE AND REEL packing. The maximal output current reaches 150mA to meet the operating requirements. It operates in the 20μA Quiescent Current state.
NCP4641H030T1G Features
TAPE AND REEL method of packing
NCP4641H030T1G Applications
There are a lot of ON Semiconductor
NCP4641H030T1G Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
