Name: MIC2941ABU
Brand: Microchip Technology
SKU: MIC2941ABU
Availability: InStock

new-10%

MIC2941ABU

Manufacturer part number:MIC2941ABU

Manufacturer:Microchip Technology

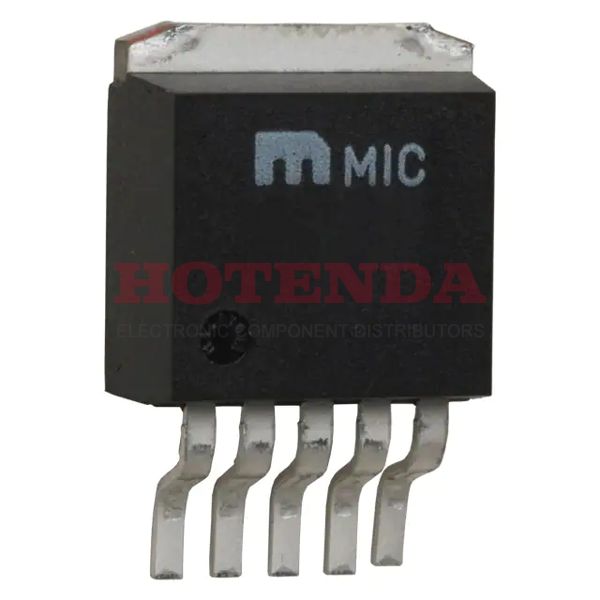

Description:Enable Adjustable MIC2941A PMIC -- Series TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:MIC2941ABU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
Package	Tube
Base Product Number	MIC2941A
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2004
Series	--
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Base Part Number	MIC2941A
Current - Supply (Max)	70mA
Voltage - Input (Max)	26V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1.25A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.24V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	500μA
Voltage Dropout (Max)	0.6V @ 1.25A
PSRR	--
Voltage - Output (Max)	26V
RoHS Status	Non-RoHS Compliant

MIC2941ABU Product Details

MIC2941ABU Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.25A. FYI, the basic part number for this IC regulator is MIC2941A. It is part of the -- Series.
