Name: LT1120ACN8
Brand: Linear Technology/Analog Devices
SKU: LT1120ACN8
Availability: InStock

new-10%

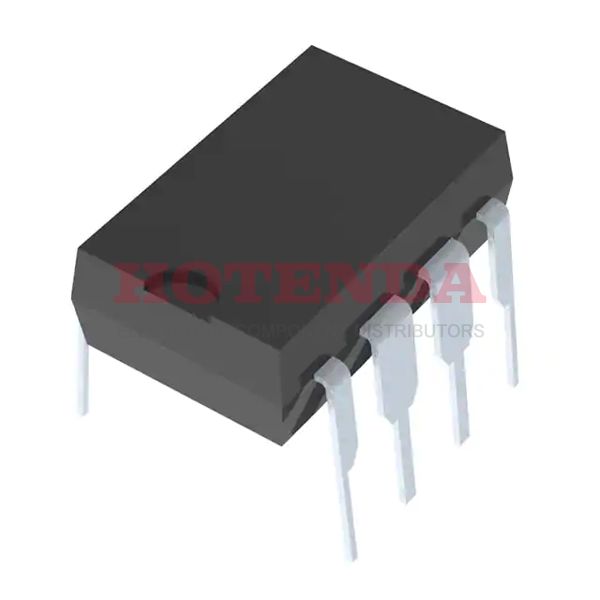

LT1120ACN8

Manufacturer part number:LT1120ACN8

Manufacturer:Linear Technology/Analog Devices

Description:Enable Adjustable 2.54mm LT1120 PMIC 8 8-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:LT1120ACN8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	8-DIP (0.300, 7.62mm)
Surface Mount	NO
Operating Temperature	0°C~100°C
Packaging	Tube
Published	2004
JESD-609 Code	e0
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	2.54mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	LT1120
Pin Count	8
JESD-30 Code	R-PDIP-T8
Current - Supply (Max)	20mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	36V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	125mA
Control Features	Enable
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	40μA
Voltage Dropout (Max)	0.85V @ 125mA
Dropout Voltage1-Nom	0.85V
Output Voltage1-Min	2.46V
Voltage - Output (Max)	35.15V
Load Regulation-Max(%)	0.5%
Height Seated (Max)	3.429mm
Width	7.62mm
RoHS Status	Non-RoHS Compliant

LT1120ACN8 Product Details

LT1120ACN8 Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 8-DIP (0.300, 7.62mm) package. There are 8 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at 0°C~100°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 125mA. IC voltage regulator has a sum of 8 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is LT1120.
