Name: MIC29202WT
Brand: Microchip Technology
SKU: MIC29202WT
Price: 5.88000 USD
Availability: InStock

new-10%

MIC29202WT

Manufacturer part number:MIC29202WT

Manufacturer:Microchip Technology

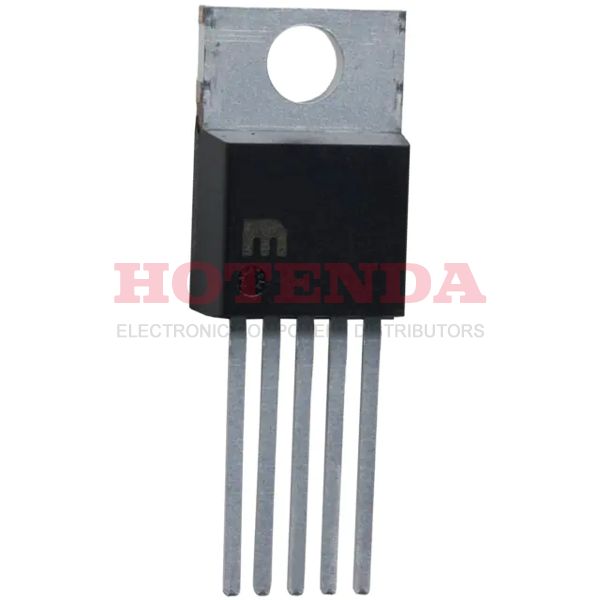

Description:Enable Adjustable MIC29202 PMIC MIC29202 Series 5 TO-220-5

Case Package:SOT-23

Datasheet:MIC29202WT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-5
Surface Mount	NO
Supplier Device Package	TO-220-5
Number of Terminals	5
Mounting Style	Through Hole
Supplier Package	TO-220
Junction to Case	3 °C/W
Input Voltage Range	2, 26 V
Maximum Input Voltage	26 V
Mounting	Through Hole
Polarity Type	Positive
Regulator Output Type	Adjustable
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.15@1mA/0.6@400mA
Operating Temperature Classification	Automotive
Package Type	TO-220
Operating Temp Range	-40C to 125C
Rad Hardened	No
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tube
Base Product Number	MIC29202
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2005
Series	MIC29202
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	SINGLE
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Number of Functions	1
Reach Compliance Code	compliant
Base Part Number	MIC29202
Pin Count	5
JESD-30 Code	R-XSFM-T5
Function	LDO
Current - Supply (Max)	12mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	26V
Output Type	Adjustable
Max Output Current	400mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.4 A
Current - Output	400mA
Quiescent Current	200μA
Control Features	Enable
Input Voltage (Min)	-1.5(V)
Voltage - Output (Min/Fixed)	1.24V
Topology	LDO
Number of Regulators	1
Min Input Voltage	-1.5V
Protection Features	Load Dump, Over Current, Reverse Polarity
Current - Quiescent (Iq)	300μA
Voltage Dropout (Max)	0.75V @ 400mA
PSRR	-
Reference Voltage	1.266 V
Dropout Voltage	400mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	26 V
Output Voltage1-Min	1.24 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.4 A
Voltage - Output (Max)	26V
Dropout Voltage1-Max	0.75 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	�1 %
Line Regulation	0.4 %
Operating Temperature TJ-Min	-40 °C
Load Regulation	0.3 %
Product	LDO Voltage Regulators
Input Voltage	26(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	0.2 mA
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC29202WT Product Details

MIC29202WT Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in TO-220-5 case. On the Linear IC itself, there are 5 terminations. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Through Hole operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 400mA from this regulator IC. There are a total of 5 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. For your information, the basic part number for this regulator IC is MIC29202. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR. In order to meet the operation requirements, its maximal output current reaches 400mA. It operates in the 200μA Quiescent Current state. This IC regulator is a part of the MIC29202 Series of devices.
