MCP6074-E/STVAO Overview

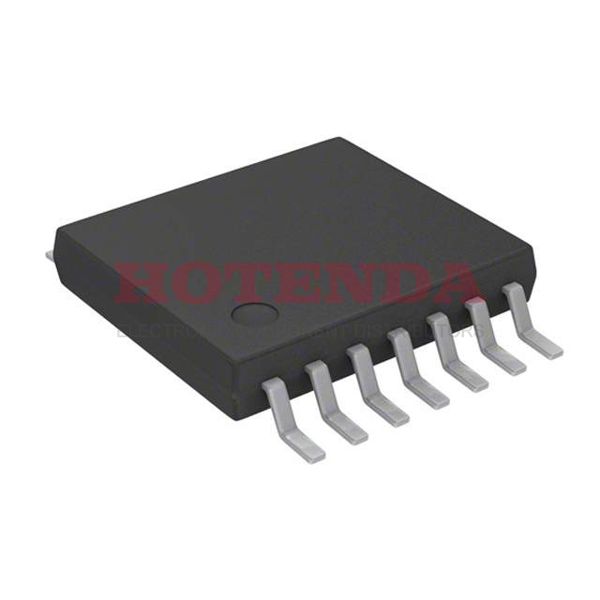

The linear amplifier is packaged in a 14-TSSOP (0.173, 4.40mm Width) case. Buffer amps of this type are called General Purpose-types. A Tube case is used for delivering the op amp. There have been a total of 14 terminations over the past year. Please take in mind that op amp should be run at 5V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Surface Mount is the recommended mounting type for this linear amplifier. With regard to operating temperature, op amp ranges -40°C~125°C TA. In total, there are 4 circuits on this buffer amplifier. Buffer amplifier produces Rail-to-Rail signals, which is one of its many benefits. As a recommendation, this electronic component should be used with a power supply that can deliver 110μA. This buffer amplifier is assigned within the Automotive, AEC-Q100 series by its manufacturer.
MCP6074-E/STVAO Features
supply voltage of 5V
Output Type: Rail-to-Rail
MCP6074-E/STVAO Applications
There are a lot of Microchip Technology MCP6074-E/STVAO Instrumentational OP Amps applications.
- Thermocouples
- High input resistance broadband
- Video data acquisition
- Image computer boards
- Multiplication circuits
- Subtraction operation circuits
- PDA
- Comparator
- High gain DC amplifier
- Voltage regulation circuit
