3656JG Overview

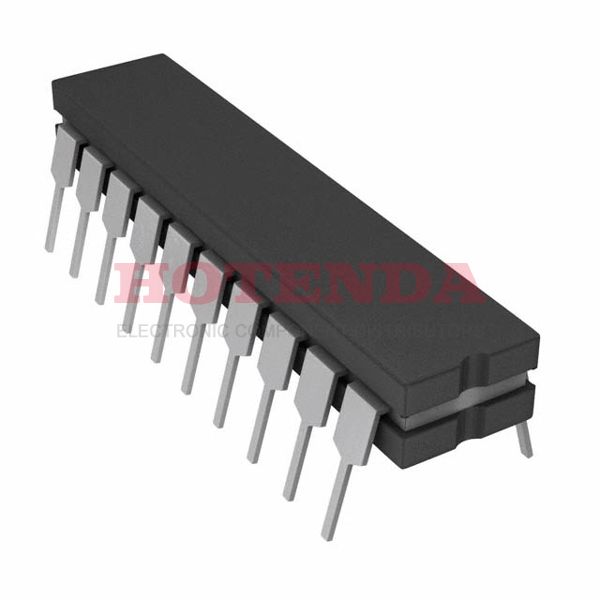

The linear amplifier is packaged in a 20-CDIP (0.900, 22.86mm) case. An op amp of this type is a Isolation-type. It comes in a Tube case, which protects instrumentation amplifier from damage during delivery. A total of 20 terminations have been reported in the past few weeks. Buffer amplifier has a total of 20 pins. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. The buffer op amp includes 20 pins. In terms of the input offset voltage, instrumentation amplifier rates at 2mV. This electrical part should be mounted using type Through Hole. With regard to operating temperature, this op amp functions well at 0°C~70°C. As long as the supply current of the chip does not exceed 14mA, this op amp ic can operate. A linear amplifier like this has 1 circuits on it. This linear amplifier has a total of 2 elements. The operating supply voltage of the buffer op amp is rated at 15V.
3656JG Features
20 Pins
supply voltage of 15V
3656JG Applications
There are a lot of Texas Instruments 3656JG Instrumentational OP Amps applications.
- Division circuits
- Portable docking station
- Video data acquisition
- Exponential operation circuits
- Car stereo
- Band-pass filter
- High gain DC amplifier
- Portable electronic products powered by batteries
- High input resistance broadband
- Active probe
